Compaq EN Series User Manual

Technical Reference Guide
Compaq Deskpro EN Series of Personal Computers
Desktop and Minitower Form Factors
Third Edition - September 1998
2-7

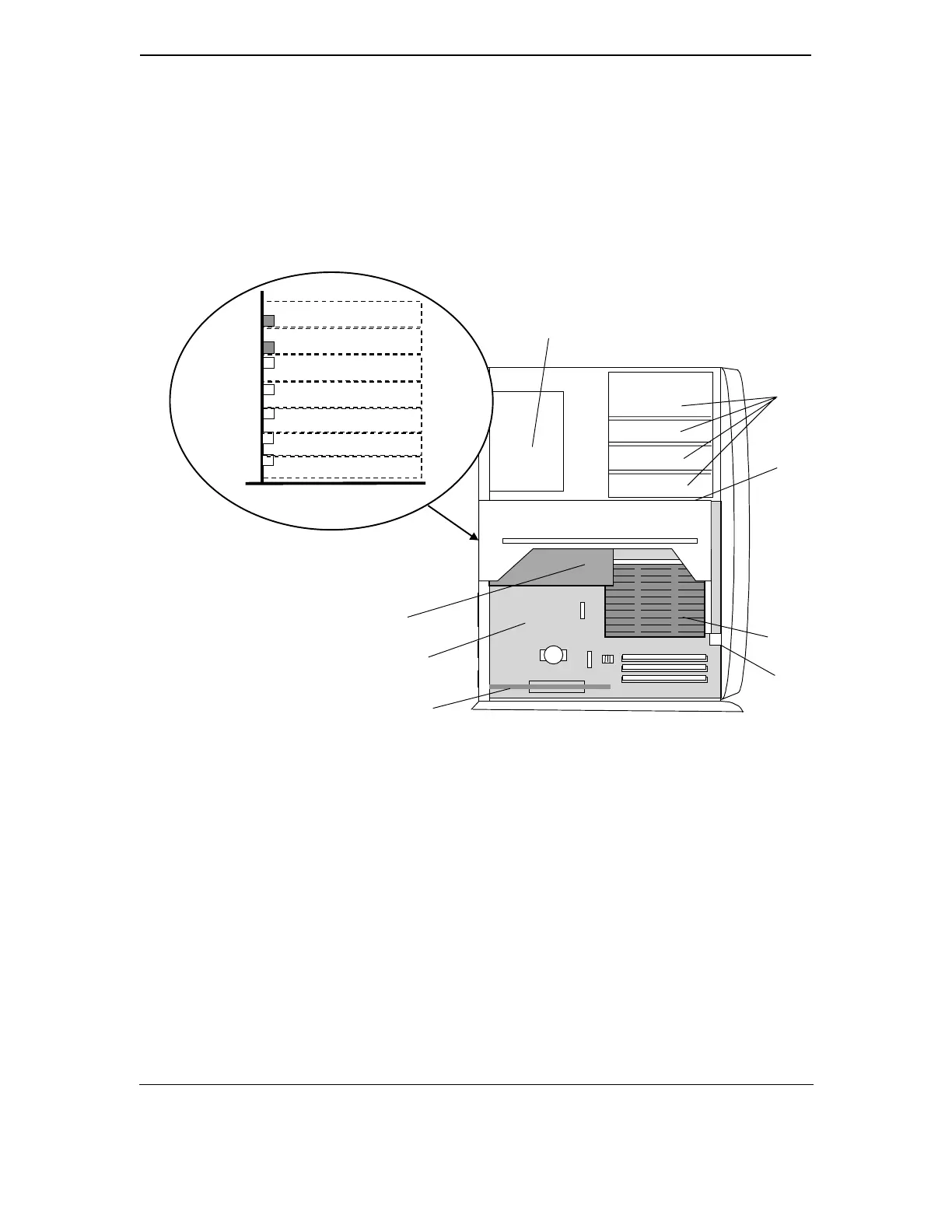

Figure 2–5. Minitower Chassis Layout, Left Side View
Front
Back
Power Supply
Drive Bays
System Board
Speaker
AGP NLX
Graphics Card
Processor
Wide-Ultra
SCSI Card
PCI Slot 1 (NIC Card)
Slots On Backplane,
Rear View @ 90
°
PCI Slot 2 (SCSI Card)
PCI Slot 3
PCI Slot 4
PCI Slot 5
ISA Slot
ISA Slot
Expansion Card Cage
