Chapter 2 System Overview
Compaq Deskpro EN Series of Personal Computers
Desktop and Minitower Form Factors
Third Edition – September 1998
2-6
2.3.2 CHASSIS LAYOUTS
Figures 2-4 and 2-5 show the layout of key assemblies within the desktop and minitower chassis
respectively. For serviceability this system features an expansion card cage that allows easy
removal of the backplane and expansion cards as a single assembly. The tilt drive cage tilts up for
easy removal/replacement of drives. For detailed information on servicing the chassis refer to the
multimedia training CD-ROM and/or the maintenance and service guide for this system.

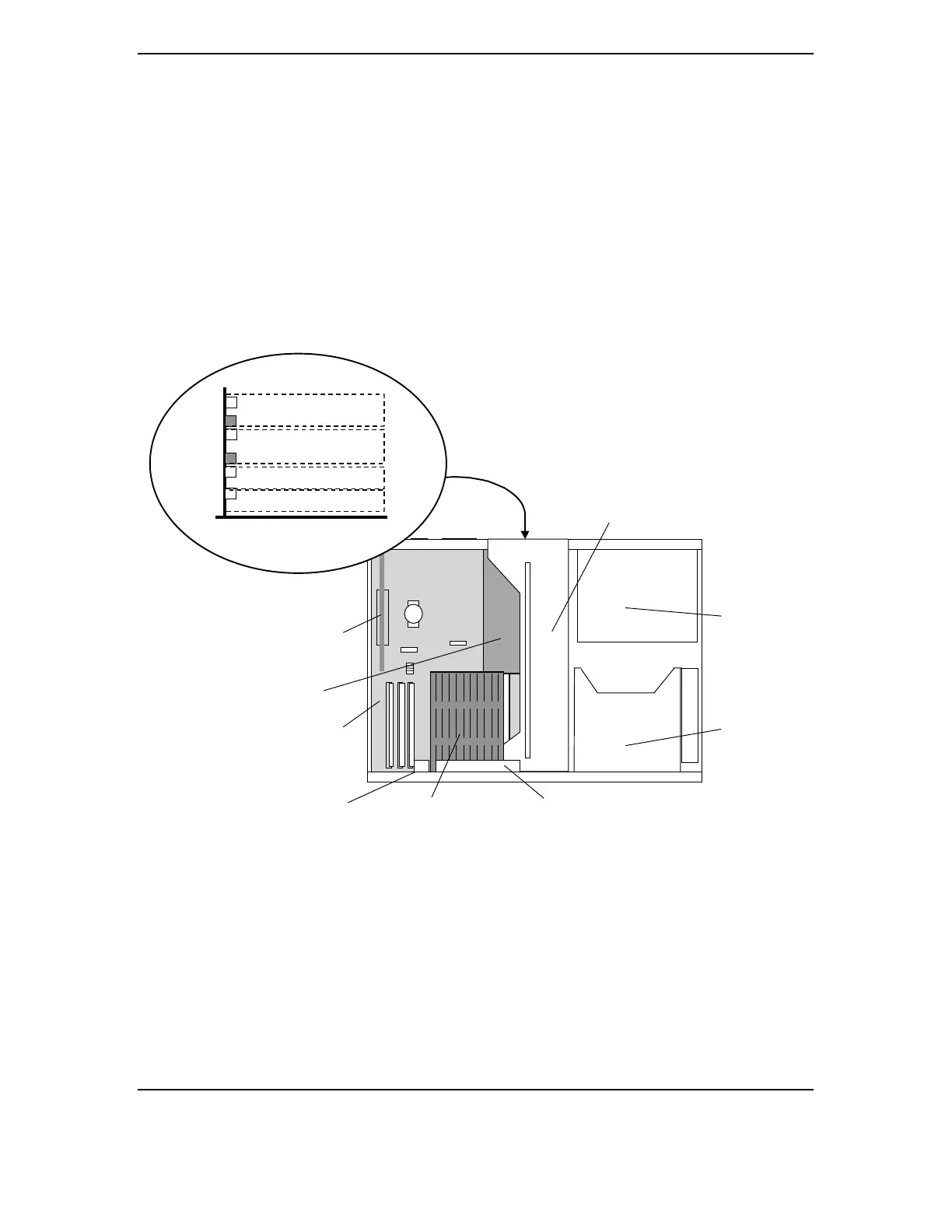

Figure 2–4.
Desktop Chassis Layout, Top View
Front
Back
Power Supply
Tilt Drive Cage
System Board
Expansion Card Cage
Chassis Fan
AGP NLX
Graphics Card
Processor
PCI Slot 4 (SCSI Card)
ISA Slot
PCI Slot 1 (NIC Card)
Slots On Backplane,
Rear View
PCI Slot 2
PCI Slot 3
ISA Slot
Wide-Ultra
SCSI Card
Speaker
