REMOVAL & REPLACEMENT
Removing the Chassis Base
Removal
1
Perform preparation procedures.
2
Remove the Left Easy Access
Panel.
3
Remove the left side plastic
subpanel.
4
Remove the Right Easy Access
Panel.
5
Remove the right side plastic
subpanel.
6
Remove the drive cage.
7

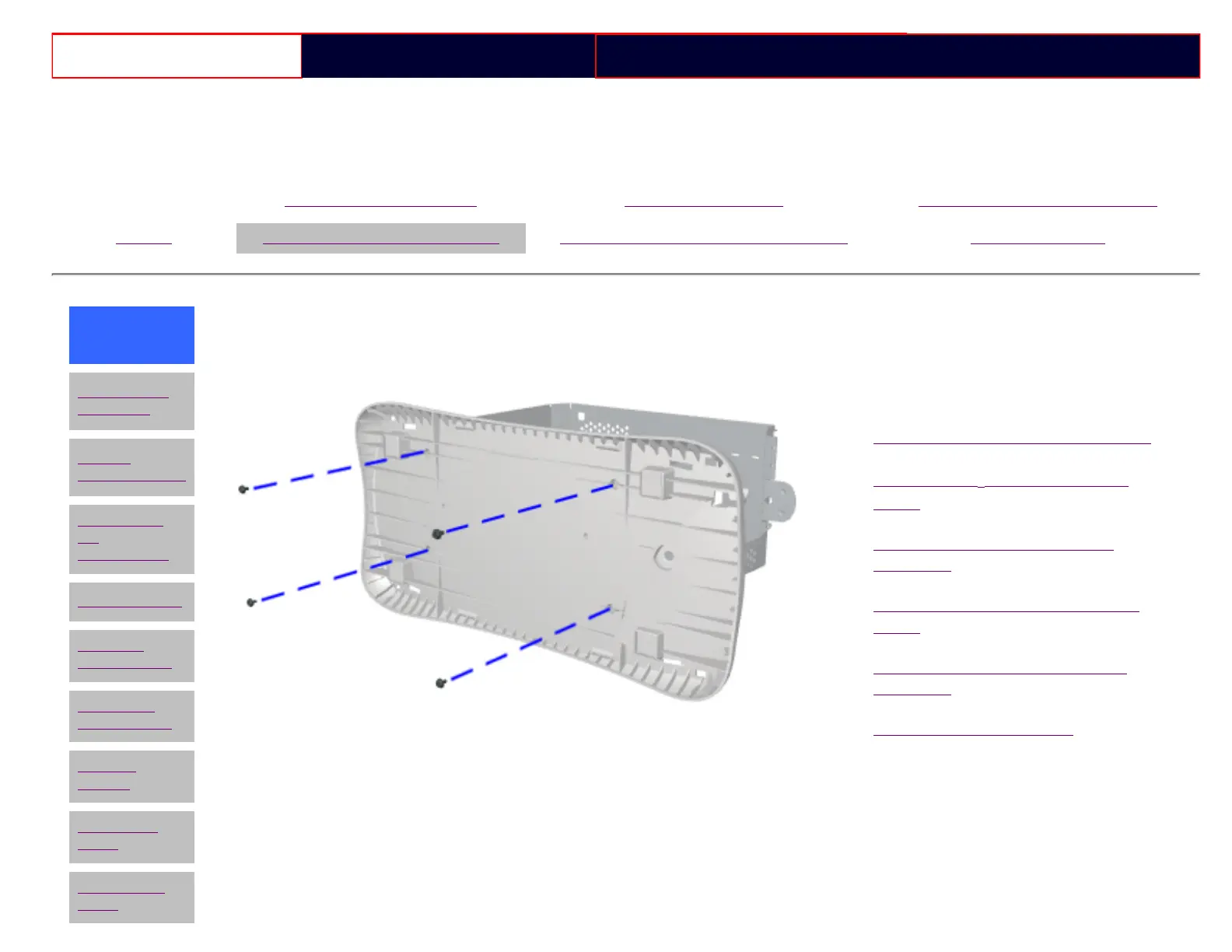

Remove four screws from the
base of the unit.
Replacement
To replace the base, reverse this
procedures.
