REMOVAL & REPLACEMENT
Removing the Right Easy Access Panel
Removal
1
Perform the preparation procedures.
2

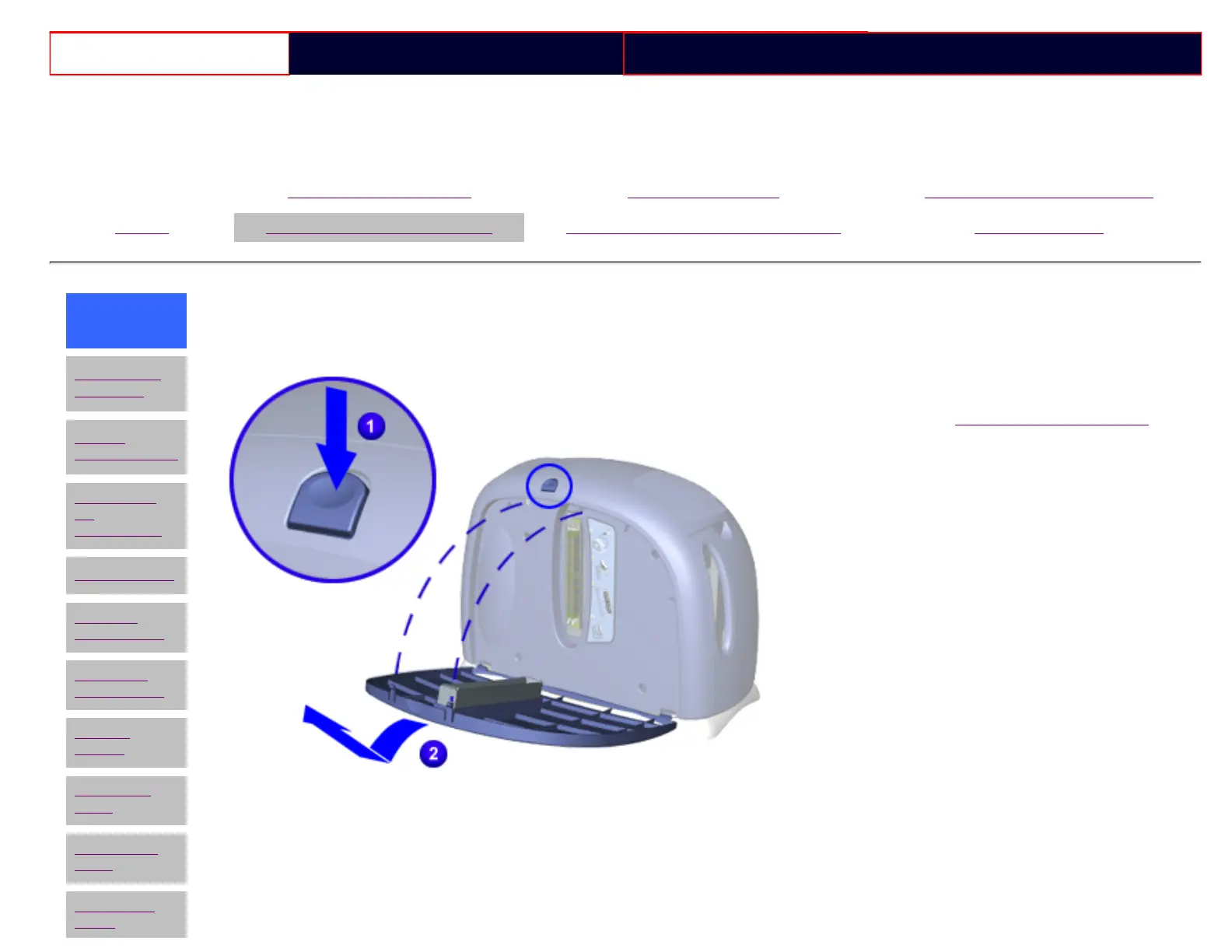

Push the (1) panel release button and
open the right side access panel.
3
Lift the (2) Right Easy Access Panel off
the hinges on the chassis.
Replacement
To replace the Right Easy Access
Panel, reverse this procedures.
