Maintenance and Service Guide
Compaq Presario EZ2000 Series Computers
Product Description Troubleshooting Illustrated Parts Catalog
Home Removal & Replacement Jumper & Switch Information Specifications
DISASSEMBLY
SEQUENCE
Electrostatic
Discharge
Service
Considerations
Preparation
for
Disassembly
Serial Number
Left Easy
Access Panel
Right Easy
Access Panel
Memory
Module
Top Access
Panel
Rear Access
Panel
REMOVAL & REPLACEMENT

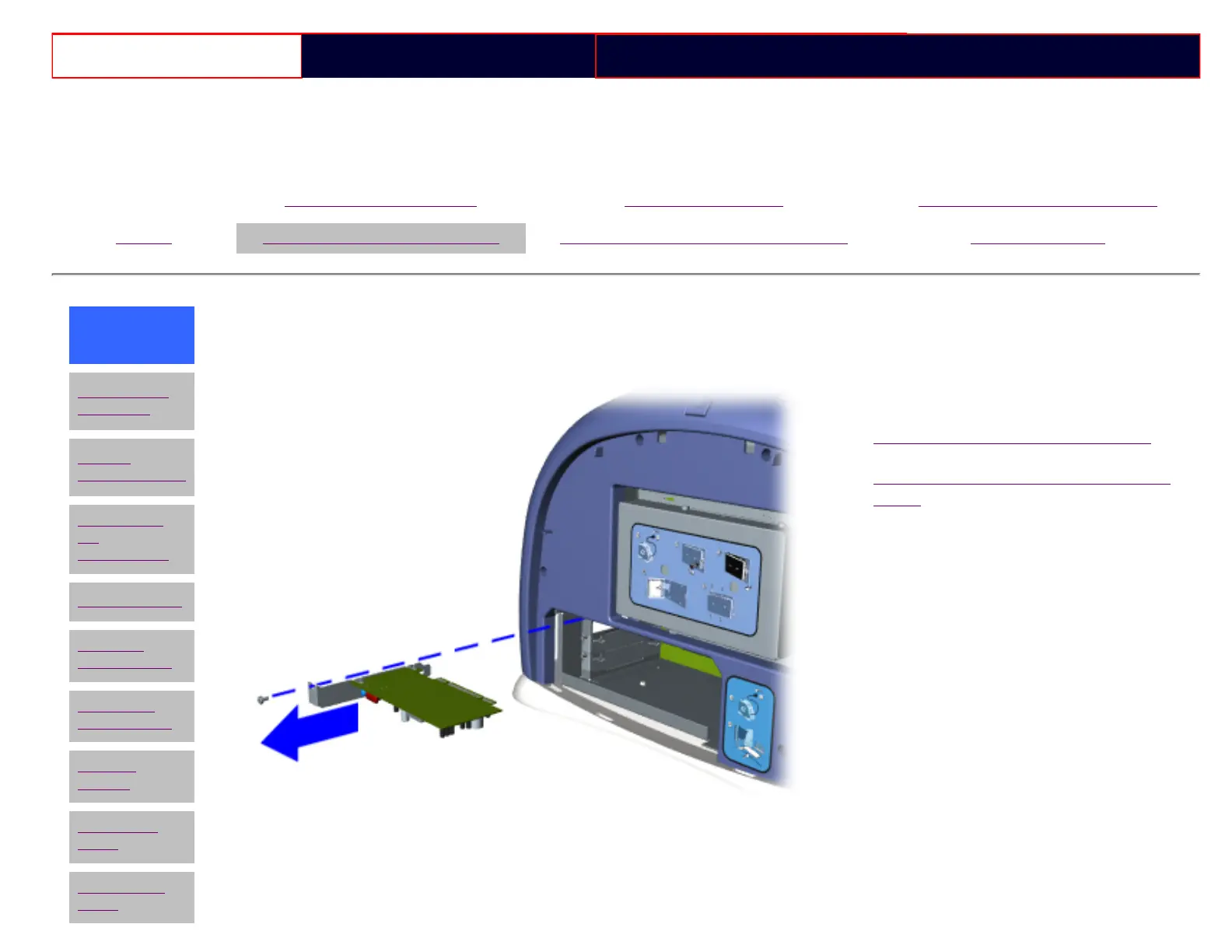

Removing the Fax/modem
Removal
1
Perform preparation procedures.
2
Remove the Left Side Easy Access
panel.
3
Remove screw securing the
fax/modem to the chassis and
pull the fax/modem out of the
slot.
Replacement
To replace the fax/modem,
reverse this procedures.
