Chapter 6. Jumper and Switch Information
Chapter 6.0 Introduction
This chapter provides switch and jumper settings for the DT3 and DT4
models of the Compaq ProLinea Family of Personal Computers.
Chapter 6.1 486-Based System Boards

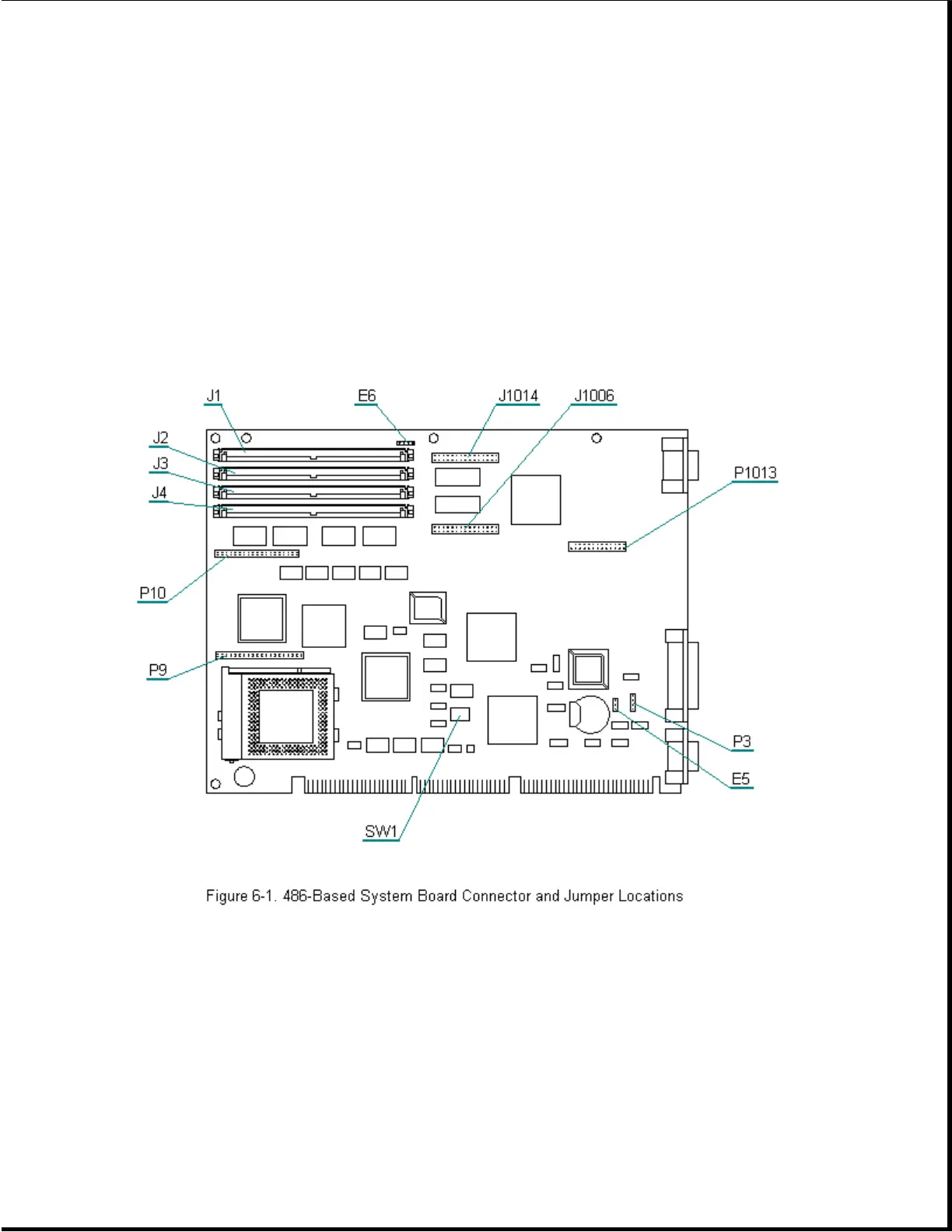

Connector and jumper locations on the 486-based system board are shown in
Figure 6-1.
486-Based System Board Configuration Jumpers
The configuration jumpers for the 486-based system boards are identified
in Table 6-1.
Table 6-1. 486-Based System Board Configuration Jumpers
===========================================================================
Function Setting Description Jumper
===========================================================================
Password 1 - 2 Password enabled E6
Enable/Disable 2 - 3 Password disabled
