Compaq Prolinea Family - Chapter 6.3 Backplane Boards

Function Description Designator
===========================================================================
SIMM Sockets 72 Pin SIMM J7, J8, J10 - J13
Replacement Battery 4 Pin Header, Key 2 P3
Feature Connector 26 Pin Header J1013
Processor/Upgrade Socket ZIF XU10
Graphics Memory Expansion 44 Pin Small Header P4, P5, P7, P8
===========================================================================
Chapter 6.3 Backplane Boards
3-Slot Backplane Board

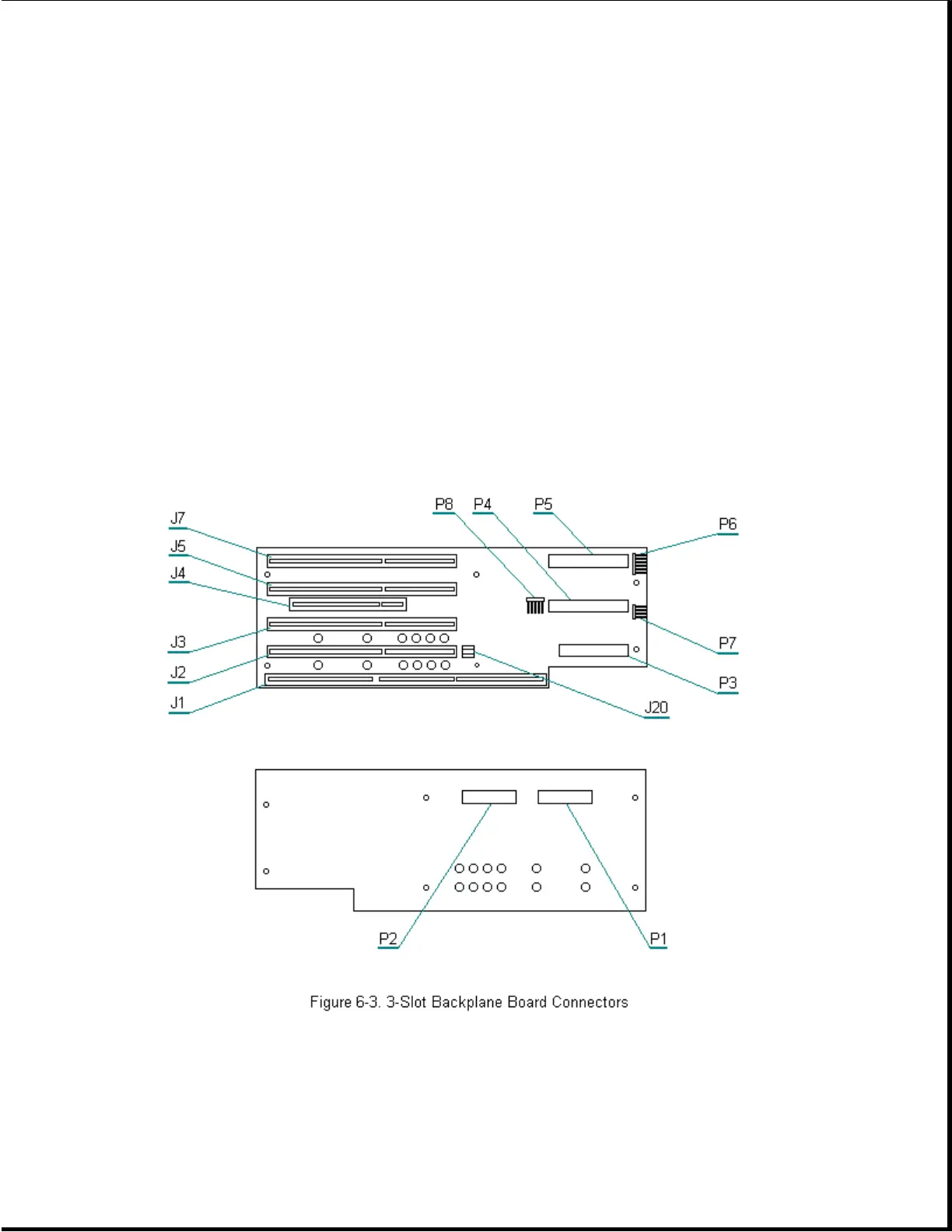

The connectors on the 3-slot backplane board are identified in Figure 6-3
and described in Table 6-9.
Table 6-9. 3-Slot Backplane Board Connectors
===========================================================================
Function Description Designator
===========================================================================
