Appendix A. Connector Pin Assignments
This appendix contains the pin assignments for all external connectors:

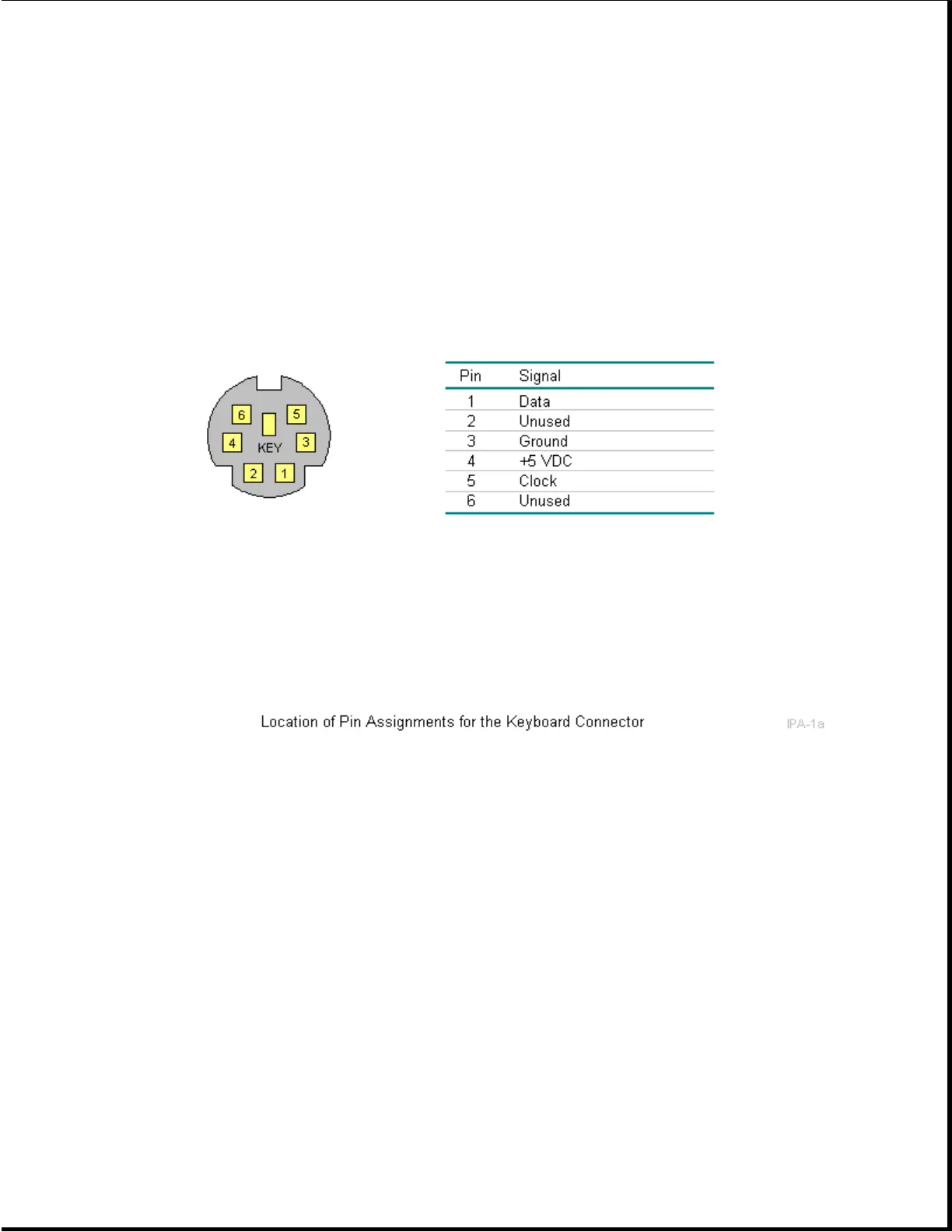

Table A-1. Keyboard
===========================================================================
Pin Signal
===========================================================================
1 Data
2 Unused
3 Ground
4 +5 VDC
5 Clock
6 Unused
===========================================================================
