Replacement Battery 4 Pin Header, Key 2 P3
Feature Connector 26 Pin Header P1013
Processor/Upgrade Socket ZIF XU42
Graphics Memory Expansion 30 Pin Small Header J1006, J1014
===========================================================================
Chapter 6.2 586-Based System Boards

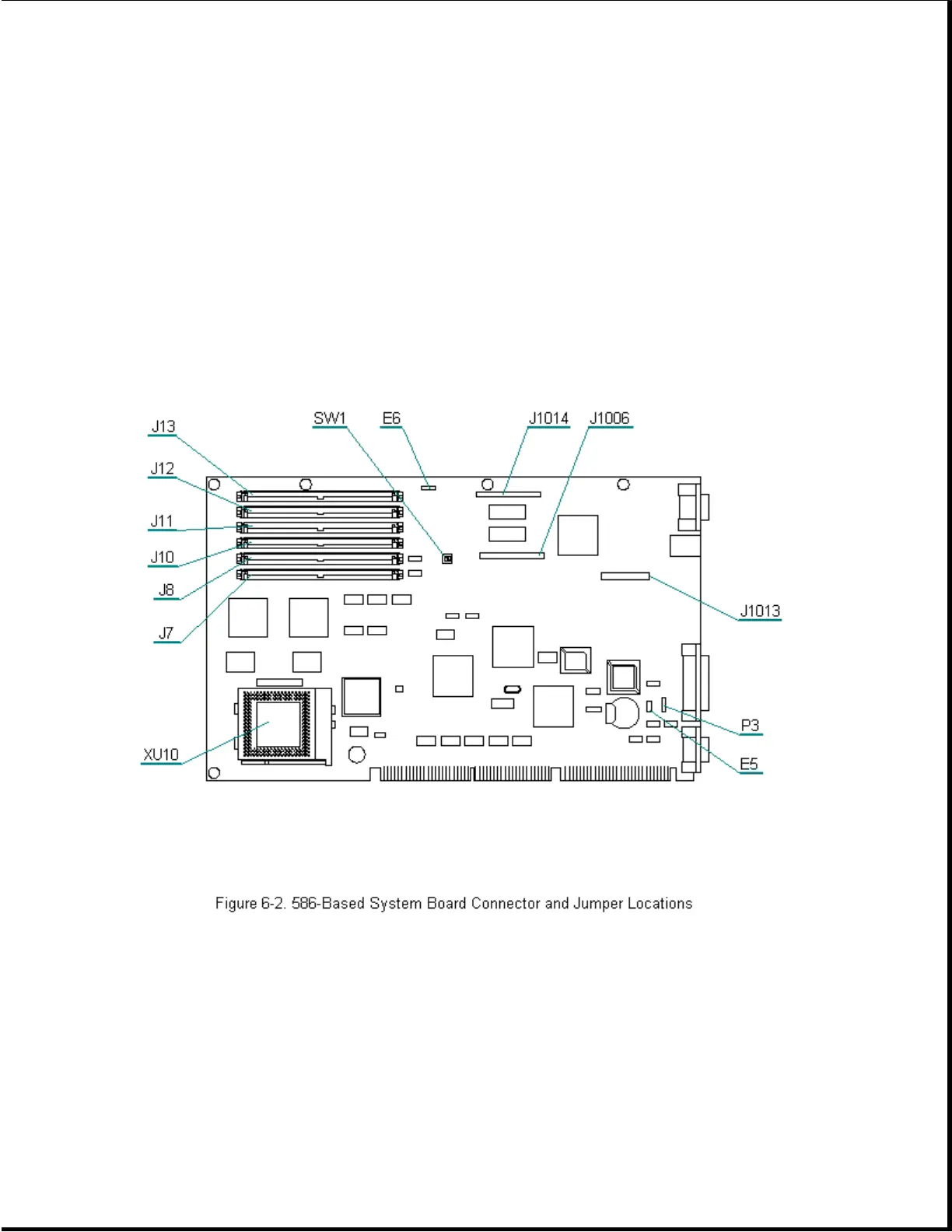

Connector and jumper locations on the 586-based system board are shown in
Figure 6-2.
586-Based System Board Configuration Jumpers
The configuration jumpers for the 586-based system board are identified in
Table 6-5.
Table 6-5. 586-Based System Board Configuration Jumpers
===========================================================================
Function Setting Description Jumper
===========================================================================
Password 1 - 2 Password enabled E6
