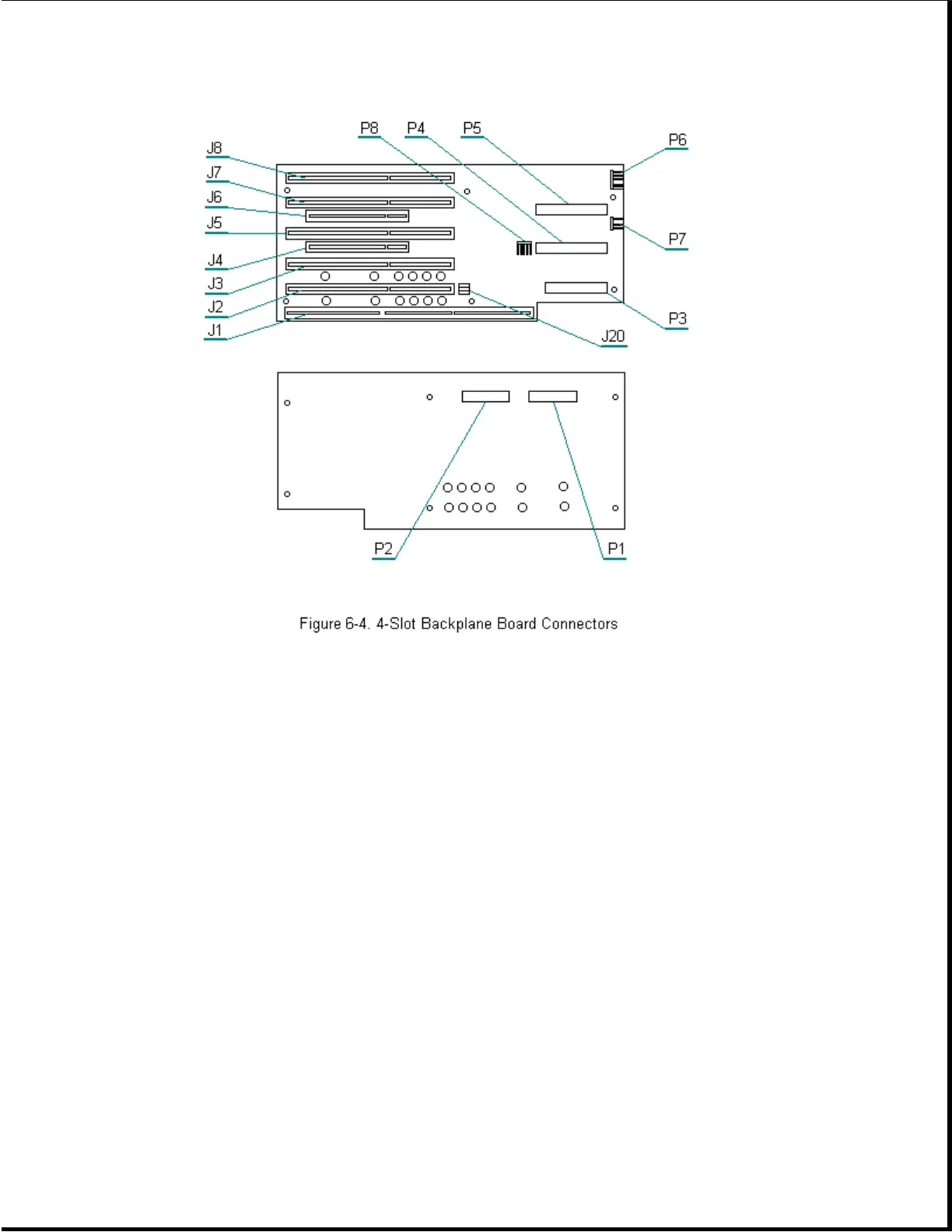

Table 6-10. 4-Slot Backplane Board Connectors
===========================================================================
Function Description Designator
===========================================================================
Standard ISA Slots ISA Socket J7, J8
Shared ISA/PCI Slots ISA Socket J3, J5
Shared ISA/PCI Slots PCI Connector J4, J6
Compaq Option Slot ISA Socket J2
System Board Edge connector J1
Diskette Drive 34-pin edge connector P3
IDE Drive 40 Pin Edge P4,P5
Speaker 4-pin header, key 3 P7
Power and Hard Drive LED 6 Pin Header, Key 3 P6
Display Data Channel 5 Pin Header, Key 2 P8
Audio Pickup J20
