535 MB SCSI Hard Drives Jumper Settings

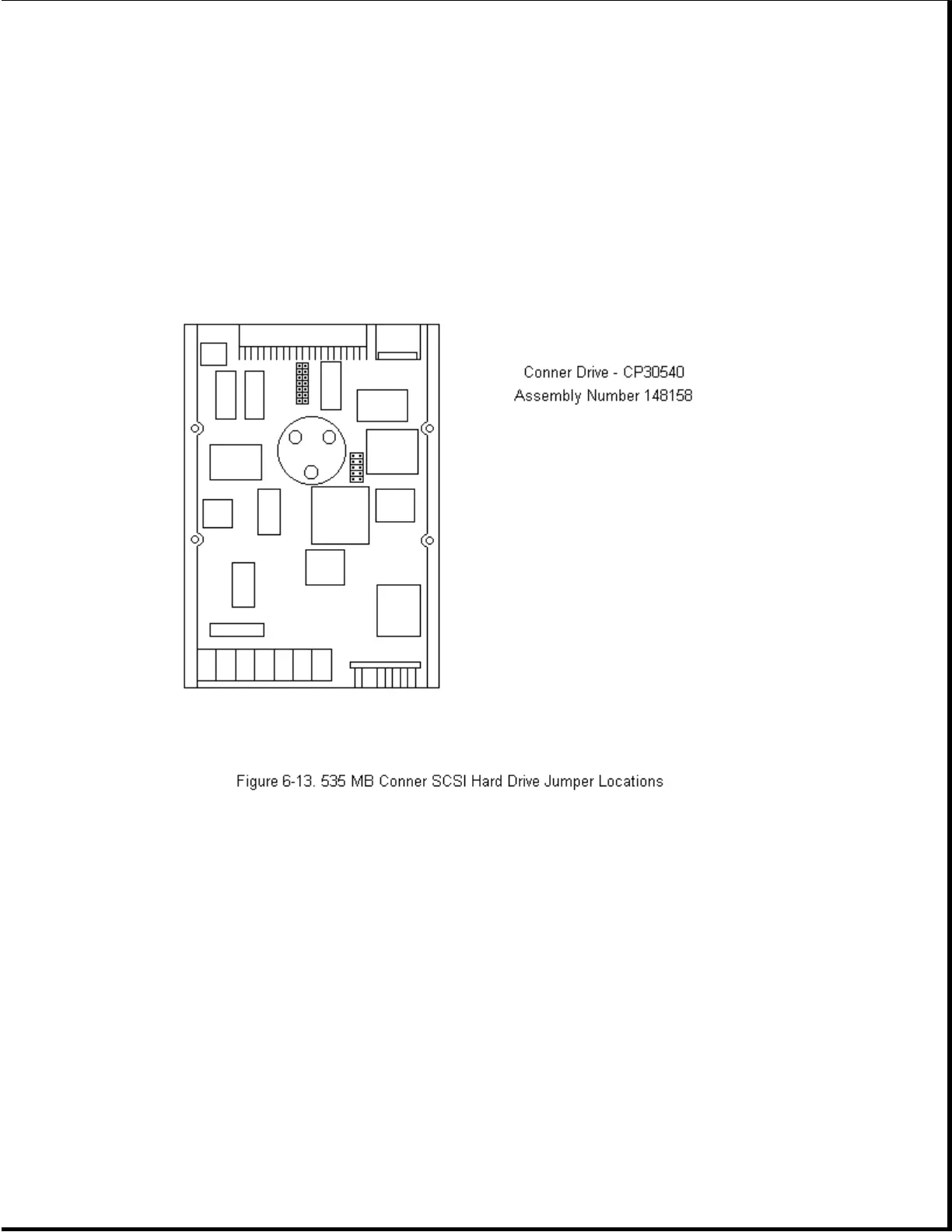

The jumper locations for the three 535 MB SCSI hard drives are shown in
Figures 6-13 through 6-15. Jumper settings are given in Tables 6-12
through 6-14.
Table 6-12. 535 MB Conner SCSI-2 Hard Drive Jumper Options (Shipped
configuration below)
===========================================================================
Jumper Option Description
===========================================================================
E1 PARK SCSI Address, Bit 0
E2 PARK SCSI Address, Bit 1
E3 OFF SCSI Address, Bit 2
E4 ON Disable Spin at Power-On
E5 OFF Enable term, (No termination on this drive)
E6 OFF Enable Term Power
===========================================================================
