Computex FP-40 - Reference：rz;A and RZ;T Series;SRST,;TRST Reference Diagram

Technical Information on On-board Flash Programmer FP-40 Aug. 31, 2023 (Second edition)
12

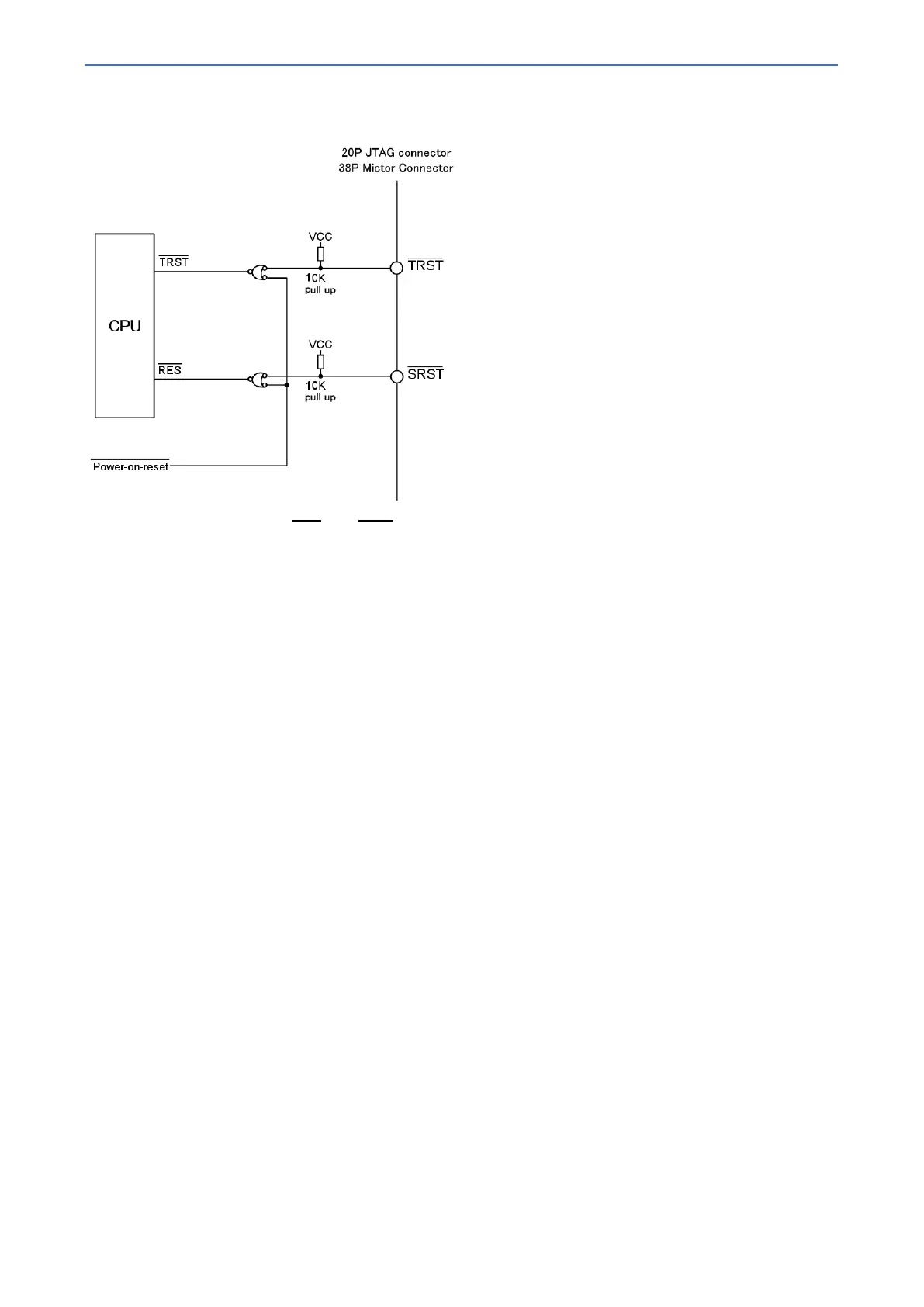

■ Reference：RZ/A and RZ/T series /SRST, /TRST reference diagram
It may be required to control the
RES and TRST CPU pins so that they are in low state at power on. Refer the CPU
datasheet for details.
