arm Cortex series (JTAG/SWD)
This section describes the specifications for connecting a CPU with a core such as Cortex-M7 or Cortex-A9 to FP-40.
The Cortex core has a dedicated debugging function called DAP. FP-40 uses this debugging function to control the CPU
to write to flash memory. SWD or JTAG is used for communication with t h e D A P. SWD is an ARM proprietary
specification that extends JTAG and uses only the TMS and TCK signals of JTAG. Also, when using JTAG, the
TRST signal may be required, or special processing may be required to use debugging functions. Please be
sure to check the CPU manual before use. This technical document describes general interface specifications.

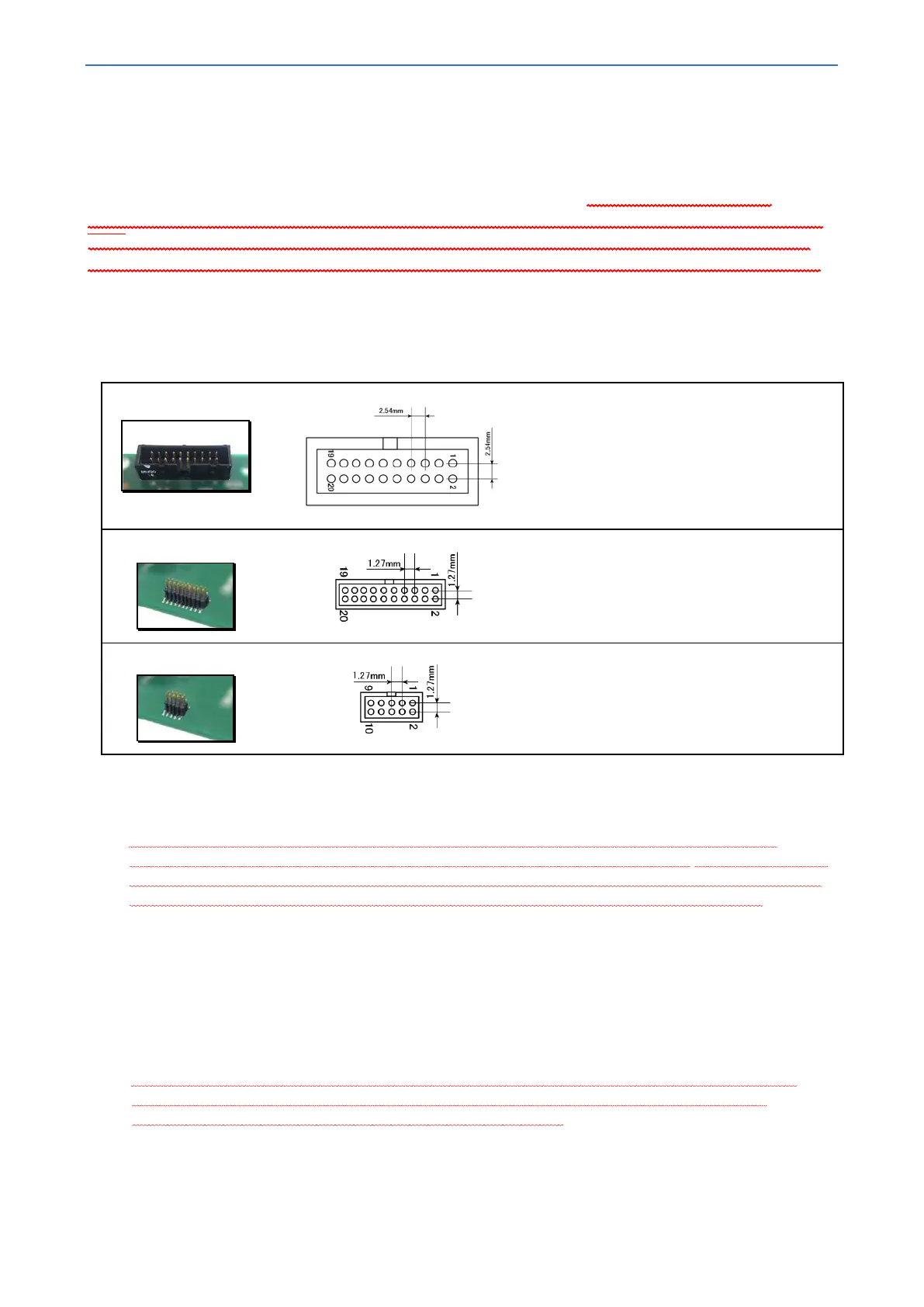

■ Supported connectors
(For detailed dimensions of the connectors, refer to the documentations by respective manufacturers of the connectors.)
20-pin 2.54mm-pitch connector
(Top view on the target board)
Recommended connector
Manufacturer: OMRON Corporation
Model : XG4C-2031
20-pin 1.27mm-pitch connector
*1
(Top view on the target board)
Recommended connector
Manufacturer: Samtec, Inc.
Model : FTSH-110-01-L-DV-K
10-pin 1.27mm-pitch connector
*2
(Top view on the target board)
Recommended connector
Manufacturer: Samtec, Inc.
Model : FTSH-105-01-L-DV-K
*1: Requires a target probe "SWJ-PRB-MIL20-20HP" (Optional product).
*2: Requires a target probe "SWJ-PRB-MIL20-10HP" (Optional product).
* Before connecting, please refer the pin configuration diagram and make sure that the
connector is in the right direction and the signals and pin numbers match. In addition to our
own specifications, each company may have extended their own specifications, so be sure to
check the signal names as well. The signal may be shorted and cause a malfunction.
■ Applicable products
This manual is applicable for the following products:
 On-board Flash Programmer FP-40
* FP-40 is the upgraded model of FP-10/FP-10(model PS). The interface specifications are
compatible with those of FP-10/FP-10(model PS), so existing users can replace their
FP-10/FP-10(model PS) with FP-40 without modification.
