DMD1050 Satellite Modem Board Web Browser
Modulation: {QPSK, BPSK, OQPSK, 8PSK, 16QAM}
Allows the user to select the modulation type.
Spectral Mask: { MIL-188-165A, Intelsat 0.35, DVB SAT 0.35, DVB SAT
0.25}
Allows the user to set the spectral shape of Tx Data Filter
Compensation: {0.0 – 1.0}
Allows you to offset output power by up to 1 dBm. This is
intended as a correction for user cabinet connectors.
Transmit / Data Menu

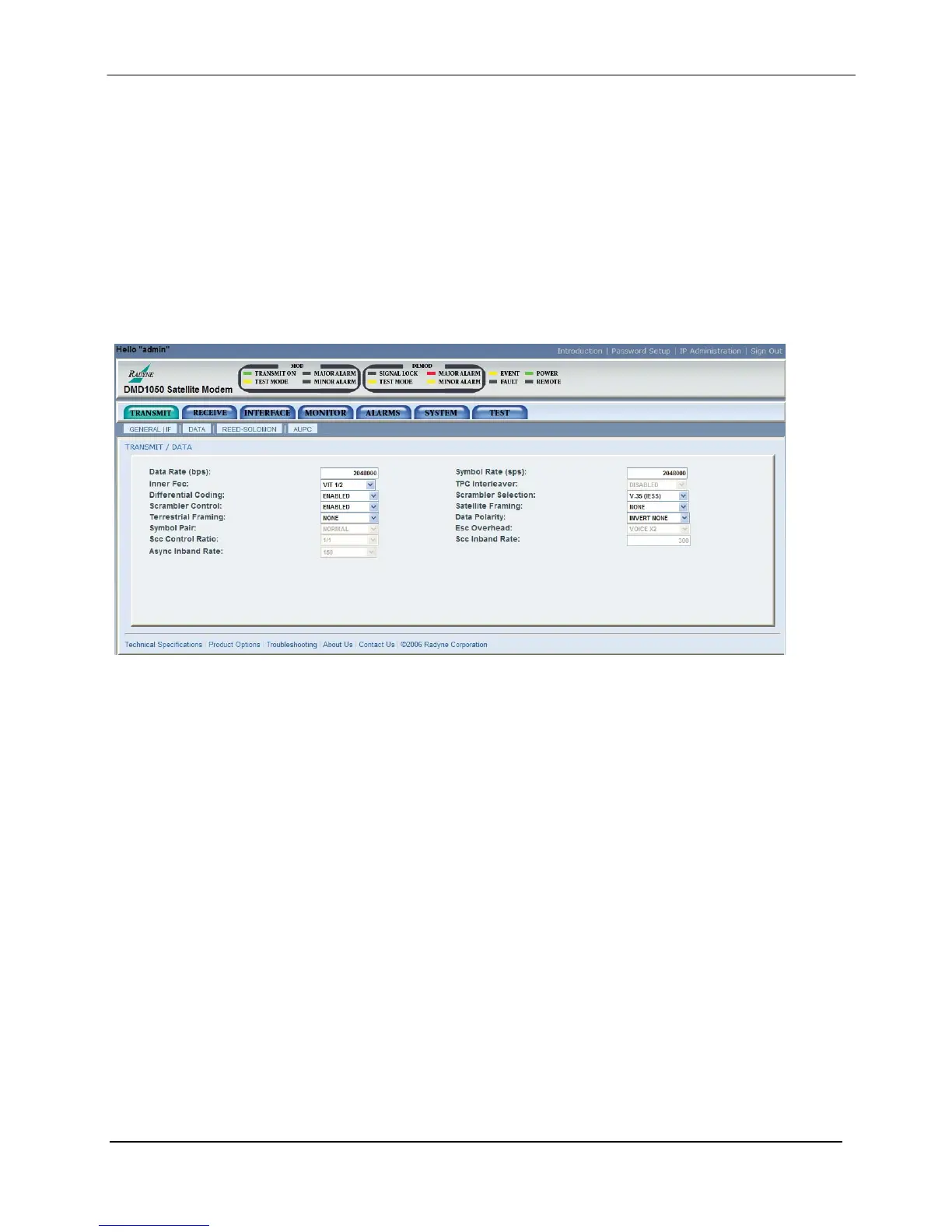

Figure 7-10. Transmit / Data Menu
Data Rate (bps): {Refer to Technical Specs for Data Rates}
Allows the user to set the Data Rate in bps steps.
Symbol Rate (sps): Allows the user to view the Symbol Rate.
Inner FEC: Viterbi {1/2, 3/4, 7/8, None}
Optional FEC Rates:
Sequential {1/2, 3/4, 7/8}
Trellis 8PSK {2/3}
Turbo {1/2, 3/4, 7/8}
CSC {3/4}
DVB VIT {2/3, 5/6}
DVB Trellis {3/4, 5/6, 7/8, 8/9}
Allows the user to select the Tx Code Rate and Type.
TPC Interleaver: {DISABLE, ENABLE}
Allows user to disable or enable the TPC Interleaver. Valid only
for Radyne turbo codes TPC.495 and TPC.793. Only available
for Radyne Legacy Turbo.
Contact factory for availability.
MN-DMD1050 7–16
Revision 9
