Figure 7-12. 16 QAM BER Performance (Turbo)
DMD1050 Satellite Modem Board Technical Specifications
6.10.9 BER Performance (16QAM Turbo)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Eb/No in dB
BE
R
Turbo
Specification
3/4 Rate
Typical
Performance
16QAM Uncoded Theory
Specification
7/8 Rate

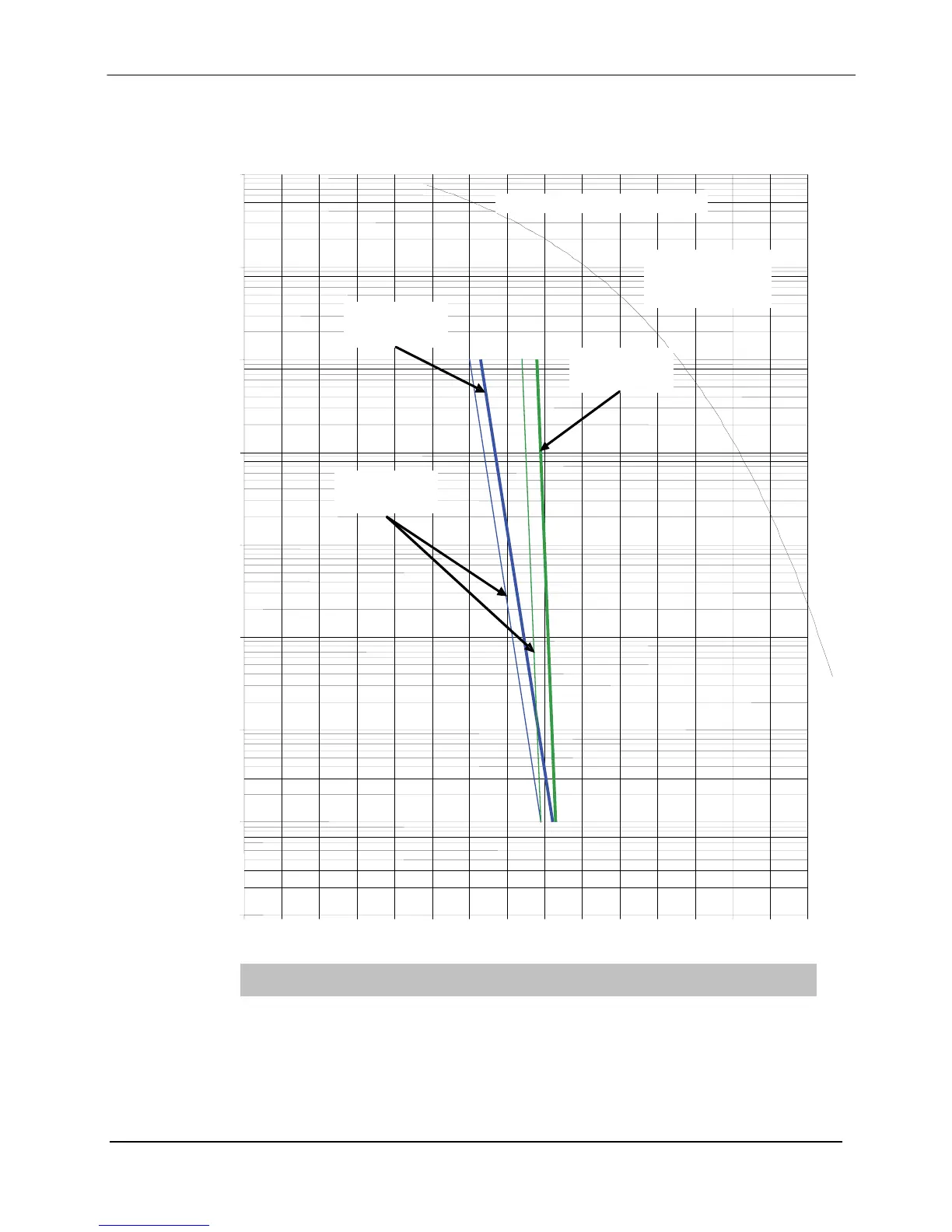

Figure 6-9. 16QAM BER Performance (Turbo)
