Figure 7-8. 16QAM BER Performance (Viterbi w/RS)

DMD1050 Satellite Modem Board Technical Specifications

6.10.6 BER Performance (16QAM Viterbi with Reed-Solomon)

1E-9

1E-8

1E-7

1E-6

1E-5

1E-4

1E-3

1E-2

1E-1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Eb/No in dB

Viterbi Decoder

Reed

Specification

3/4 Rate w/RS

Specification

7/8 Rate w/RS

Typical

Performance

16QAM Uncoded Theory

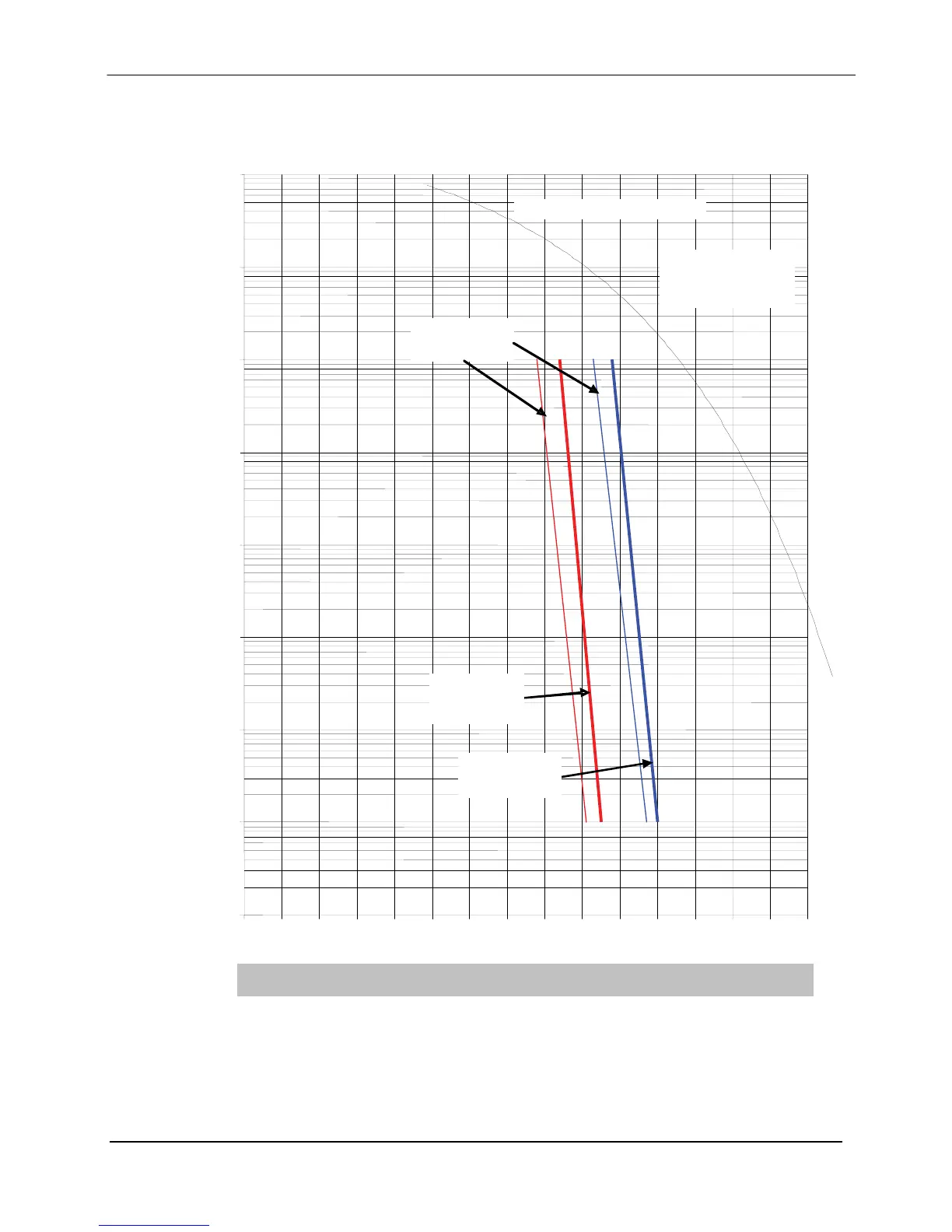

Figure 6-6. 16QAM BER Performance (Viterbi w/RS)

Note: Eb/No values include the effect of using Differential Decoding.

MN-DMD1050 6–11

Revision 9
