DMD1050 Satellite Modem Board Web Browser
7.3.4.5.1 System Menu
System / Terminal / Remote Menu

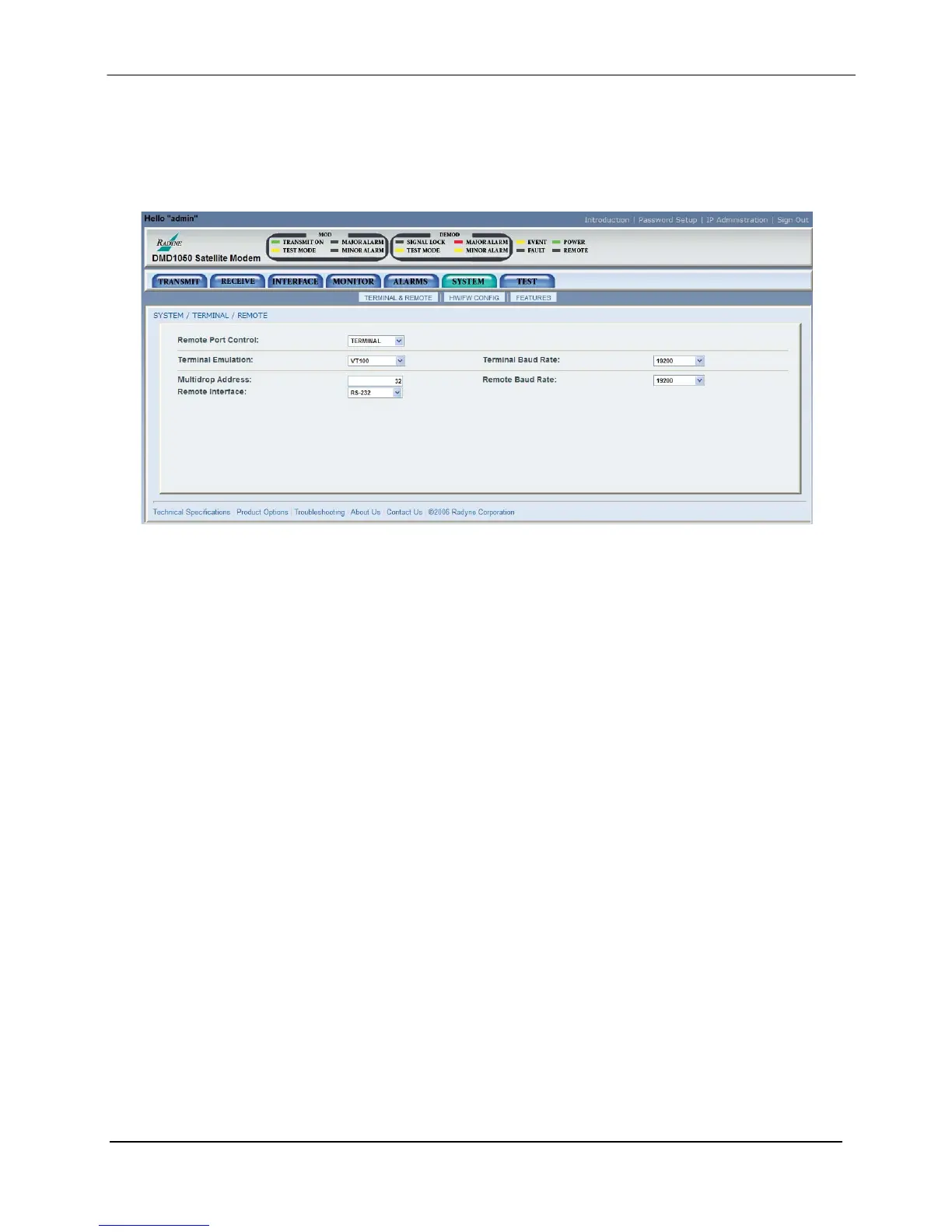

Figure 7-26. System / Terminal / Remote Menu
Remote Port Control {TERMINAL, COMPUTER}
Allows the user to select between terminal RS-232 control and
remote port M&C RS-232/-485 control.
Terminal Emulation: {VT-100, WYSE50, VT100}
Allows the user to select the emulation type.
Terminal Baud Rate: {150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600,
115200}
Allows the user to enter the terminal baud rate.
Multidrop Address: {32 - 255}
Allows the user to enter the Remote Port Multidrop Address.
Remote Interface: {RS-232, RS-485}
Allows the user to enter the Remote Port interface type.
Remote Baud Rate: {150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38,400, 57,600,
115200}
Allows the user to enter the Remote Port Baud Rate.
MN-DMD1050 7–44
Revision 9
