Comtech EF Data Radyne DMD1050 - ACG Output Voltage

DMD1050 Satellite Modem Board Technical Specifications
6.10.11 ACG Output Voltage
The AGC Output Voltage is a function of the Input Power Level in dBm. The AGC Output
Voltage is found on the Alarm connector Pin 24 of J2.

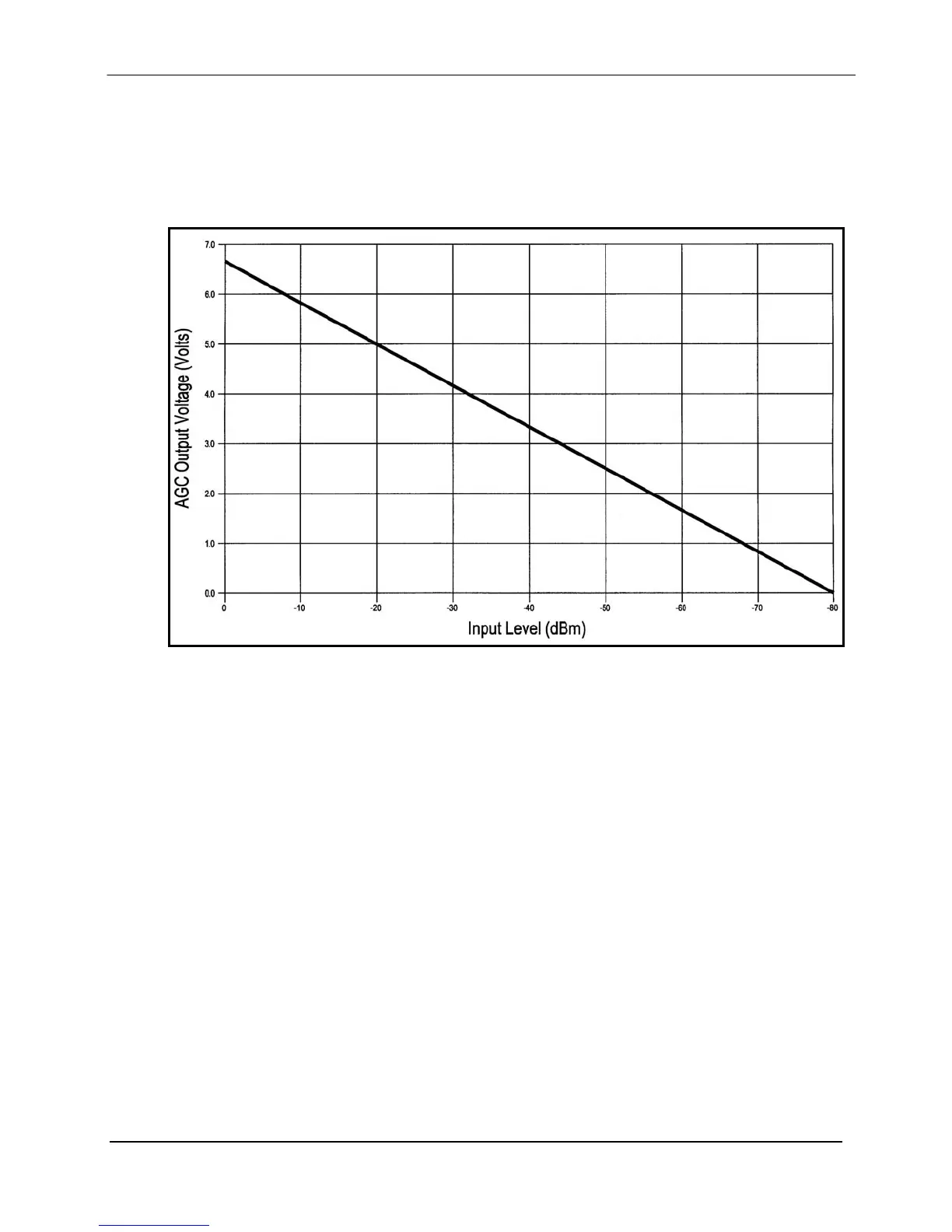

Figure 6-13. AGC Voltage Monitor
MN-DMD1050 6–18
Revision 9
