Comtech EF Data Radyne DMD1050 - User Interface Connections

DMD1050 Satellite Modem Board User Interface Connections

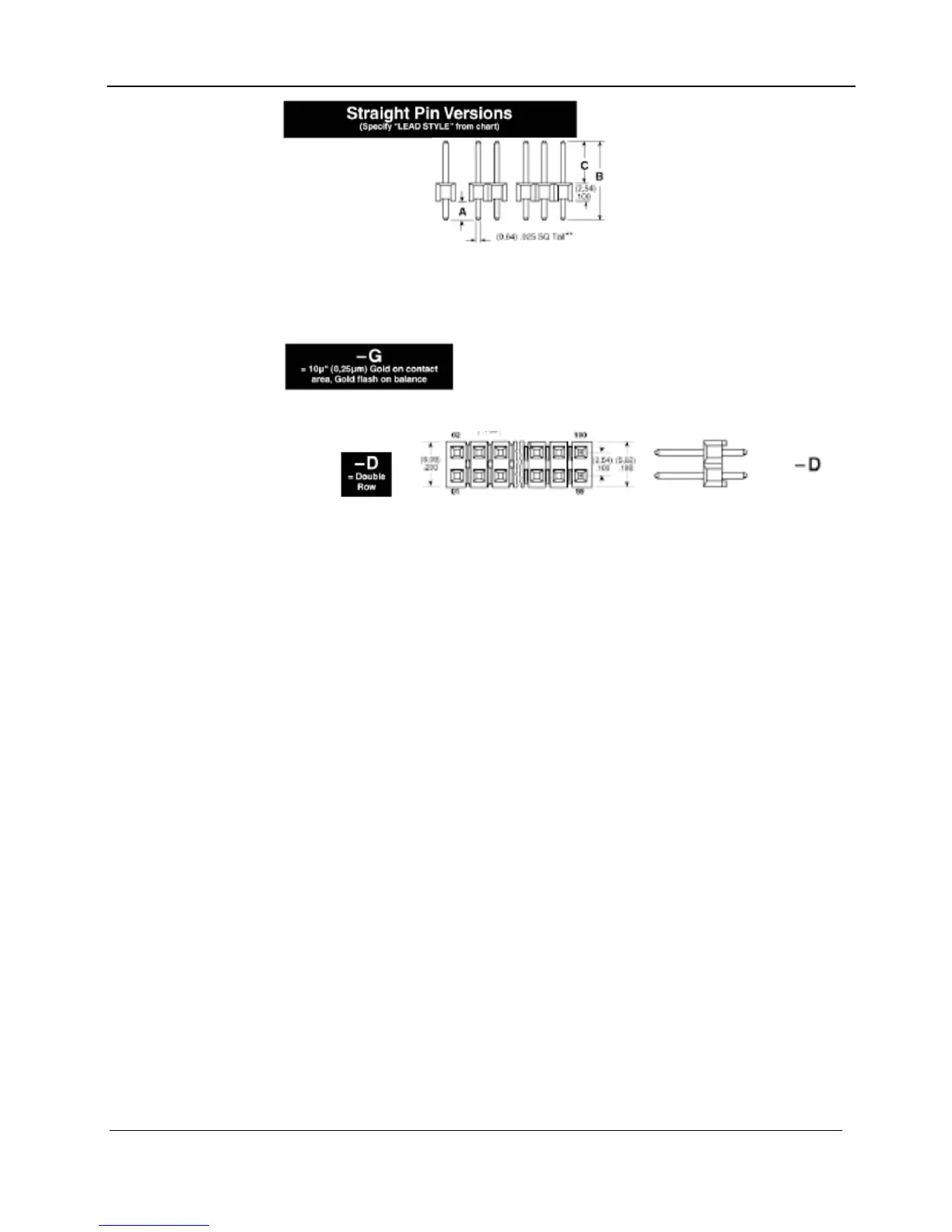

Style
-07
Dimensions are in inches
A B
.100 0.430
C
0.430
G = Gold plating
D = Dual Row.
J1 & J2 Information on Supplied Interface Connectors
J1 Async Interface 10Pin Dual Row: Mfg (Tyco) P/N: 102387-1
J2 Mil 188-114A 26Pin Dual Row: Mfg (Tyco) P/N: 102548-6
J1/J2 Receptacle Contacts: Mfg (Tyco) P/N: 1-87309-4
MN-DMD1050 E–2
Revision 9
