Comtech EF Data Radyne DMD1050 - BER Performance (8 PSK Trellis)

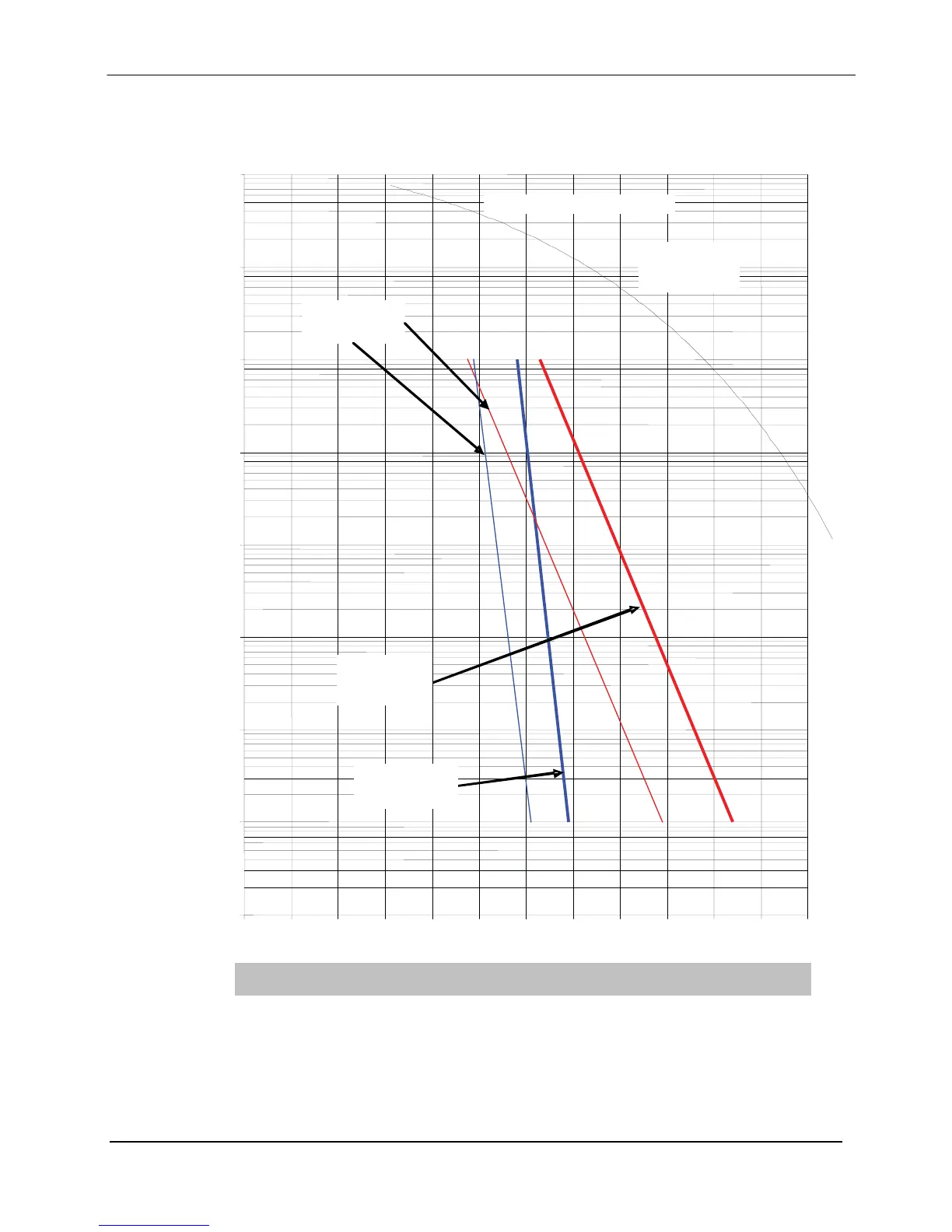

Figure 7-5. 8PSK BER Performance (Trellis)
DMD1050 Satellite Modem Board Technical Specifications
6.10.4 BER Performance (8PSK Trellis)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
Eb/No in dB
BE
R
Trellis
Decode
Specification
2/3 Rate
Specification
2/3 Rate w/RS
Typical
Performance
8PSK Uncoded Theory
Figure 6-4. B/O/QPSK BER Performance (Trellis)
Note: Eb/No values include the effect of using Differential Decoding and V.35 Descrambling.
