DMD1050 Satellite Modem Board Web Browser
Receive / Data Menu

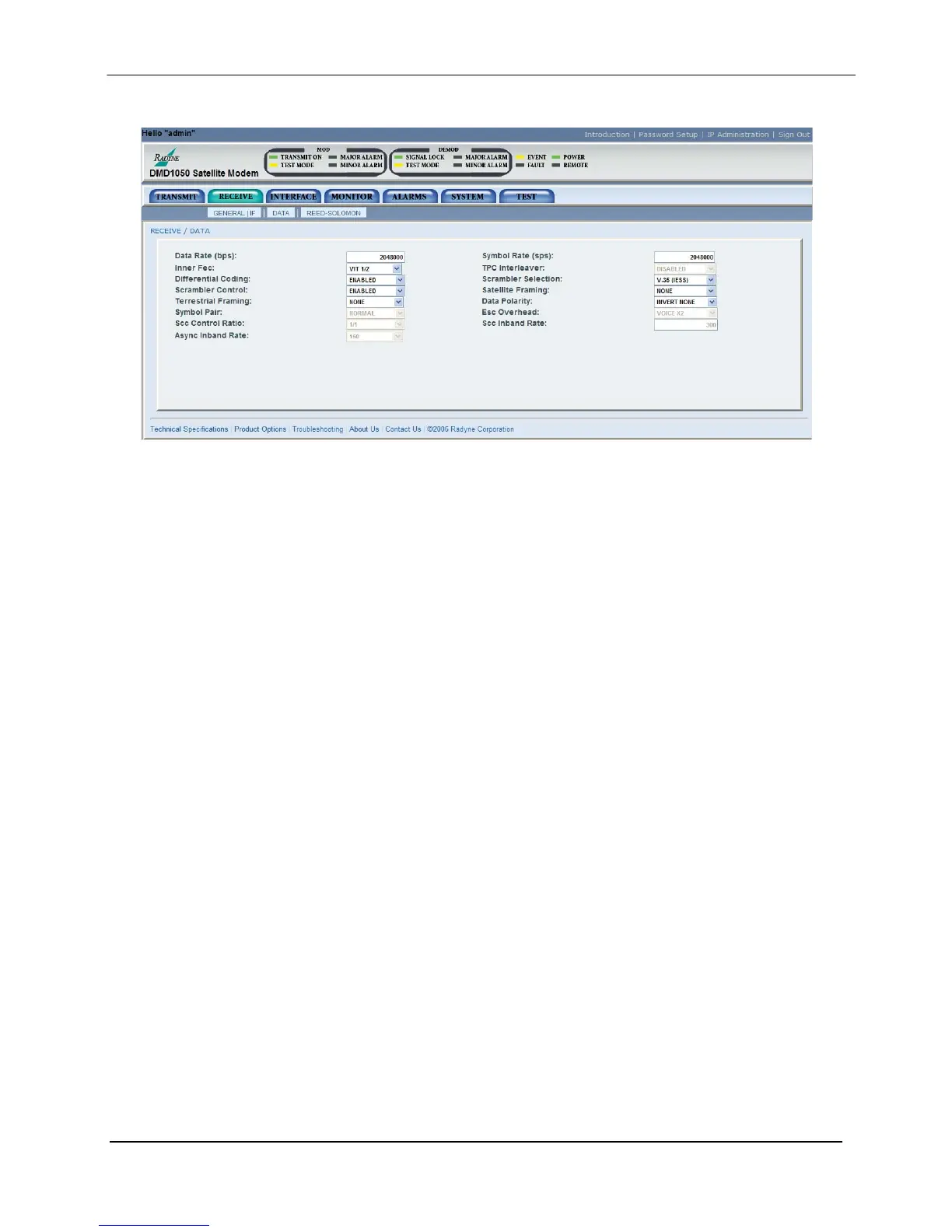

Figure 7-14. Receive / Data Menu
Data Rate (bps): {Refer to Technical Specs for Data Rates}
Allows the user to set the Data Rate in bps steps via the Front
Panel Arrows or Keypad.
Symbol Rate (sps): Allows the user to view the Symbol Rate.
Inner Fec: Viterbi {1/2, 3/4, 7/8, None}
Optional FEC Rates:
Sequential {1/2, 3/4, 7/8}
Trellis 8PSK {2/3}
Turbo {1/2, 3/4, 7/8}
CSC {3/4}
DVB VIT {2/3, 5/6}
DVB Trellis {3/4, 5/6, 7/8, 8/9}
Allows the user to select the Rx Code Rate and Type.
TPC Interleaver {DISABLED, ENABLED}
Allows the user to disable or enable TPC Interleaver. Valid only
for Radyne turbo codes TPC.495 and TPC.793. Only available
for Radyne legacy Turbo.
Contact factory for availability.
Differential Coding {ENABLED, DISABLE}
Allows the user to enable or disable the Differential Decoder.
Having the decoder enabled ensures proper phase lock. May not
be adjustable in some modes.
MN-DMD1050 7–25
Revision 9
