DMD1050 Satellite Modem Board Web Browser
Pattern Error Count: {NO SYNC, nnnn x 10
n
}
Displays the number of errors detected by the test
pattern checker.
Carrier Type: {NORMAL, CW, DUAL, OFFSET POS FIR, NEG FIR}
RESTART TEST PATTERN:
Click to reset the test pattern counter and generator.
Test / IQ Plot Menu

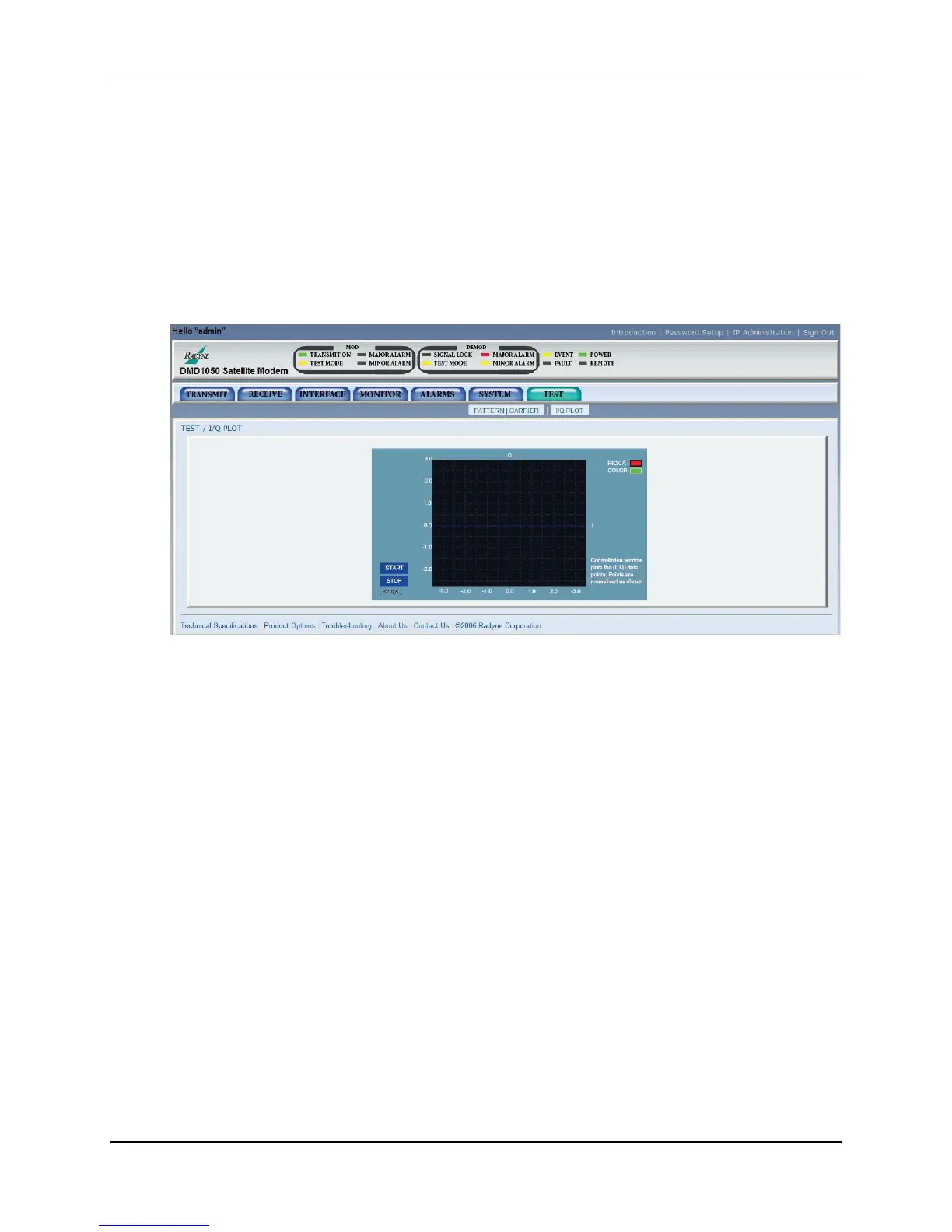

Figure 7-30. Test / IQ Plot Menu
PICK A COLOR: {RED, GREEN}
START: { }
Allows the user to run I/Q Plot by clicking Start.
STOP: { }
Allows the user to terminate the I/Q Plot by clicking
Stop.
MN-DMD1050 7–48
Revision 9
