Rudi-AGX GMSL 1/2 Connector
The Rudi-AGX allows GMSL 1 or GMSL 2 through the Quad MATE-AX connectors. The GMSL to MIPI
Deserializers are embedded on the carrier board which use 4-Lane MIPI video per 2 cameras.
Additionally, the Rudi-AGX outputs +12V Power Over COAX (POC).
Function
Description
Location
Front
Type

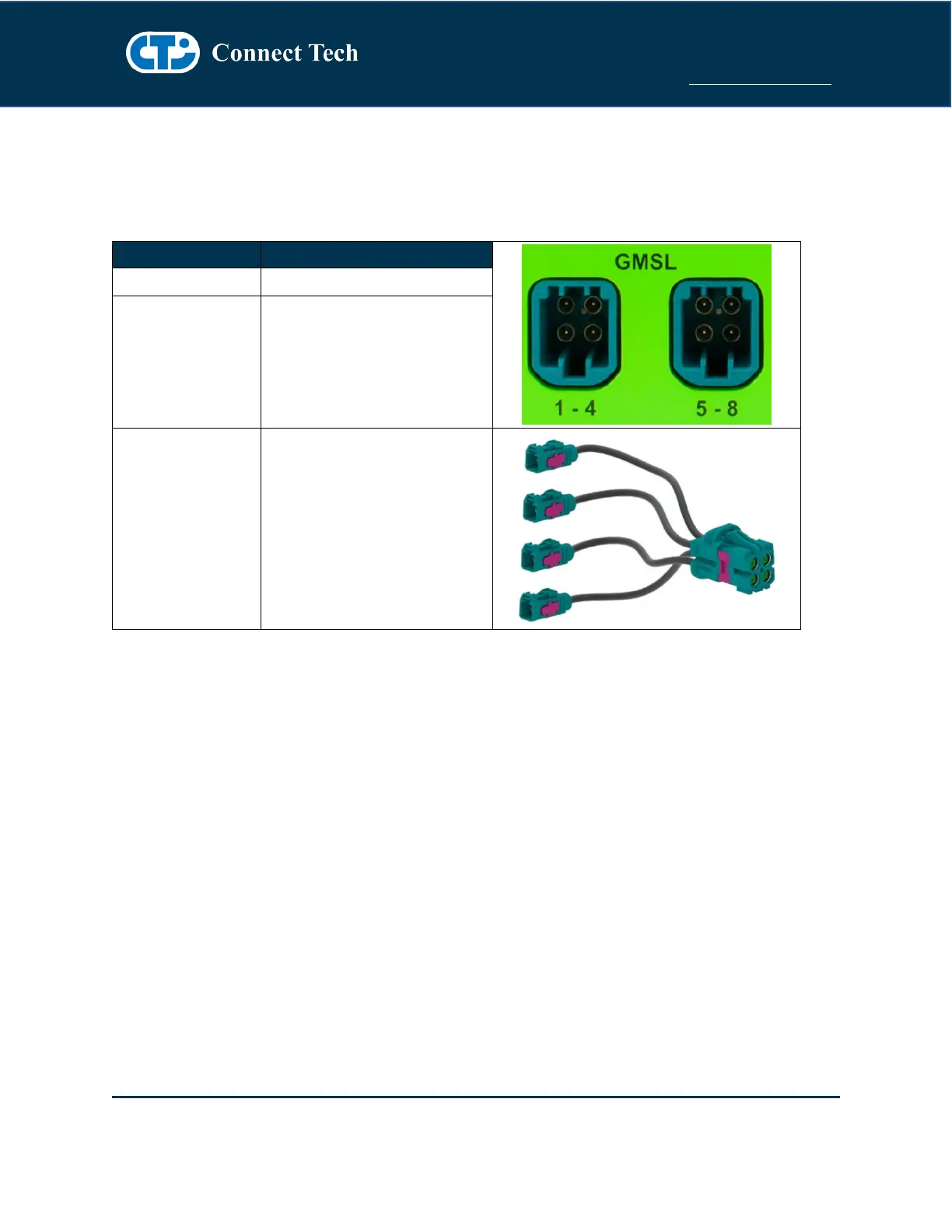

GMSL 1/2 Camera Connectors
Mating Cable
Quad Fakra GMSL Cable
4 Position MATE-AX to 4 x
FAKRA Z-code 50Ω RG174 Cable
CTI P/N: CBG341
