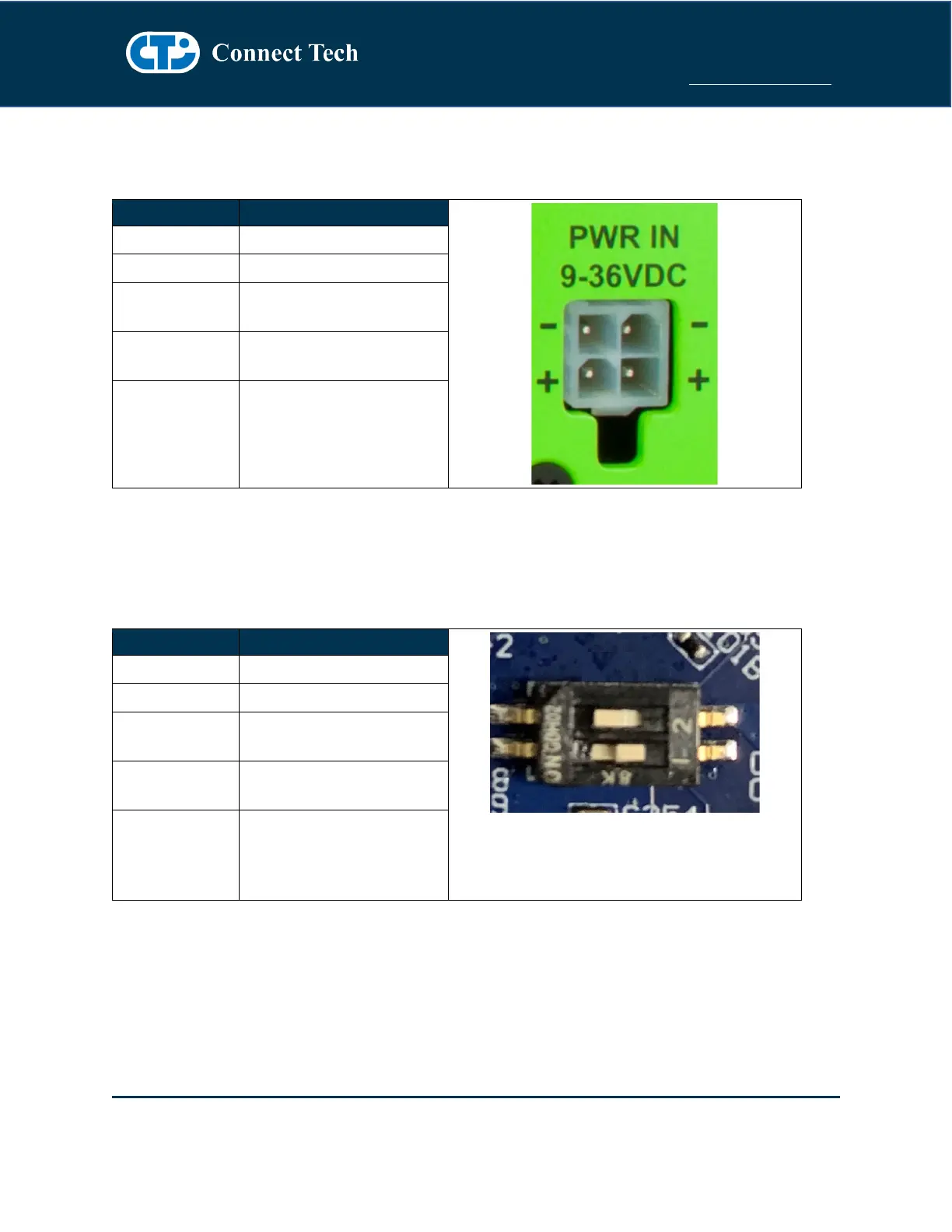

Rudi-AGX Power Connector
The Rudi-AGX implements a Mini-Fit Jr. 4-Pin Power Connector that accepts +9V to +36V DC power.
Function
Description
Location
Front
Type
Mini-Fit Jr. 4-Pin Connector
Minimum Input
Voltage
+9V DC
Maximum Input
Voltage
+36V DC
Mating Cable
CBG408
Note: A Power Supply capable of 120W or more is required to operate the Rudi-AGX with all peripherals running at their
respective maximum rating.
Rudi-AGX GMSL 1/2 DIP Switch Selection
The Rudi-AGX internally implements 2 position DIP Switch for the selection of GMSL 1 or GMSL 2.
Function
Description
SW4
LEFT SIDE (ON)
RIGHT SIDE (OFF)
SW4-2
SW4-2
SW4-1
SW4-1
Location
Embedded within Rudi-AGX
Type
DIP Switch
SW3-1 – OFF
SW3-2 – OFF
GMSL1
High Immunity Mode - ON
SW3-1 – ON
SW3-2 – OFF
GMSL2
3 Gbps
SW3-1 – OFF
SW3-2 – ON
GMSL2
6 Gbps
