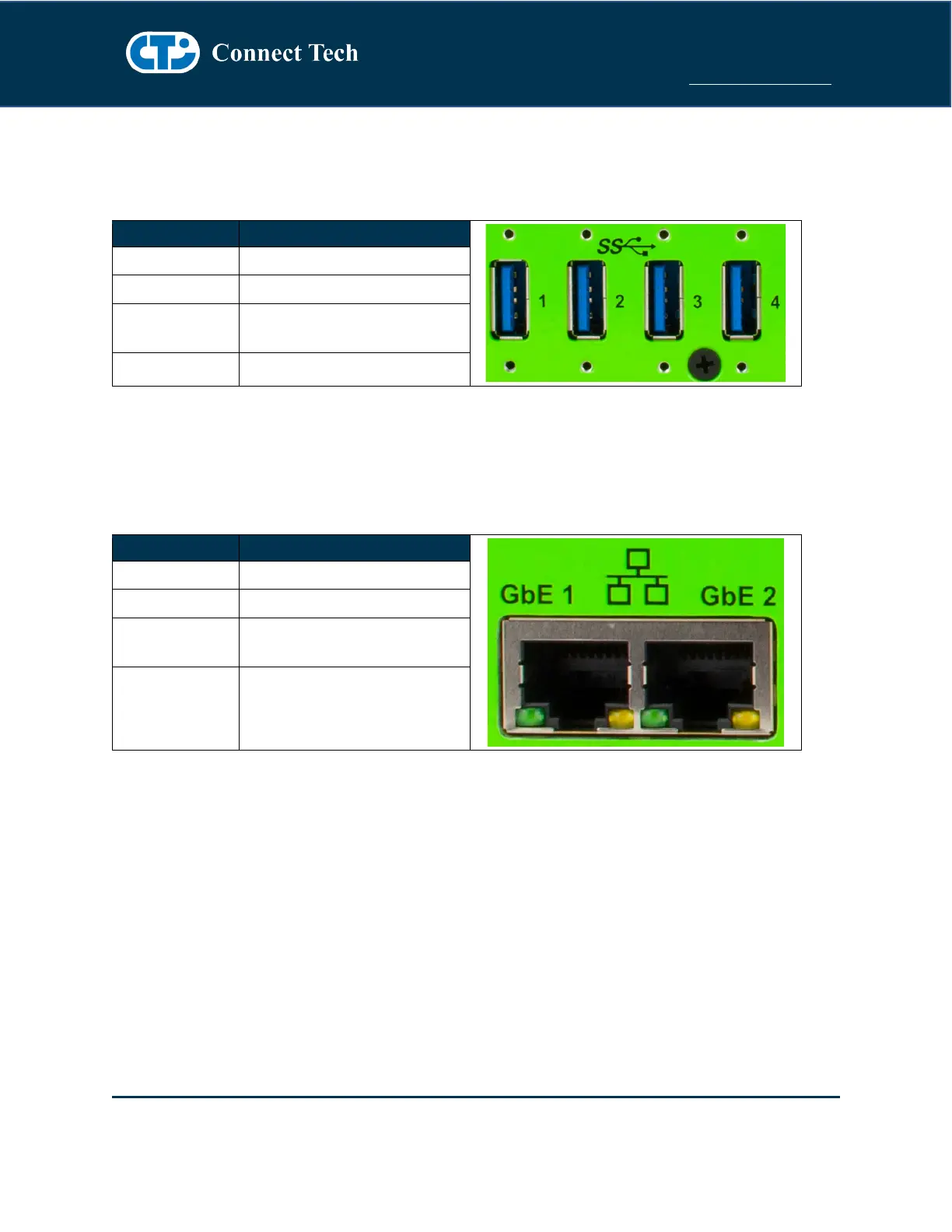

Rudi-AGX USB 3.0 Type-A Connector
The Rudi-AGX incorporates 4 vertical USB 3.0 Type-A connectors with a 2A current limit per connector.
All USB 3.0 Type-A ports are 5Gbps capable.
Function
Description
Location
Rear
Type
USB Type-A Connector
Mating
Connector
USB Type-A Cable
Pinout
Refer to USB Standard
Rudi-AGX 10/100/1000 Dual Ethernet Connector
The Rudi-AGX implements 2 x RJ-45 ethernet connectors for internet communication. Connector A is
connected to the AGX module through an RGMII PHY. Connector B is connected through a i210 PCIe
Gigabit Ethernet PHY to the AGX module.
Function
Description
Location
Rear
Type
RJ-45 Connector
Mating
Connector
RJ-45 Ethernet Cable
Pinout
Refer to Ethernet Standard
