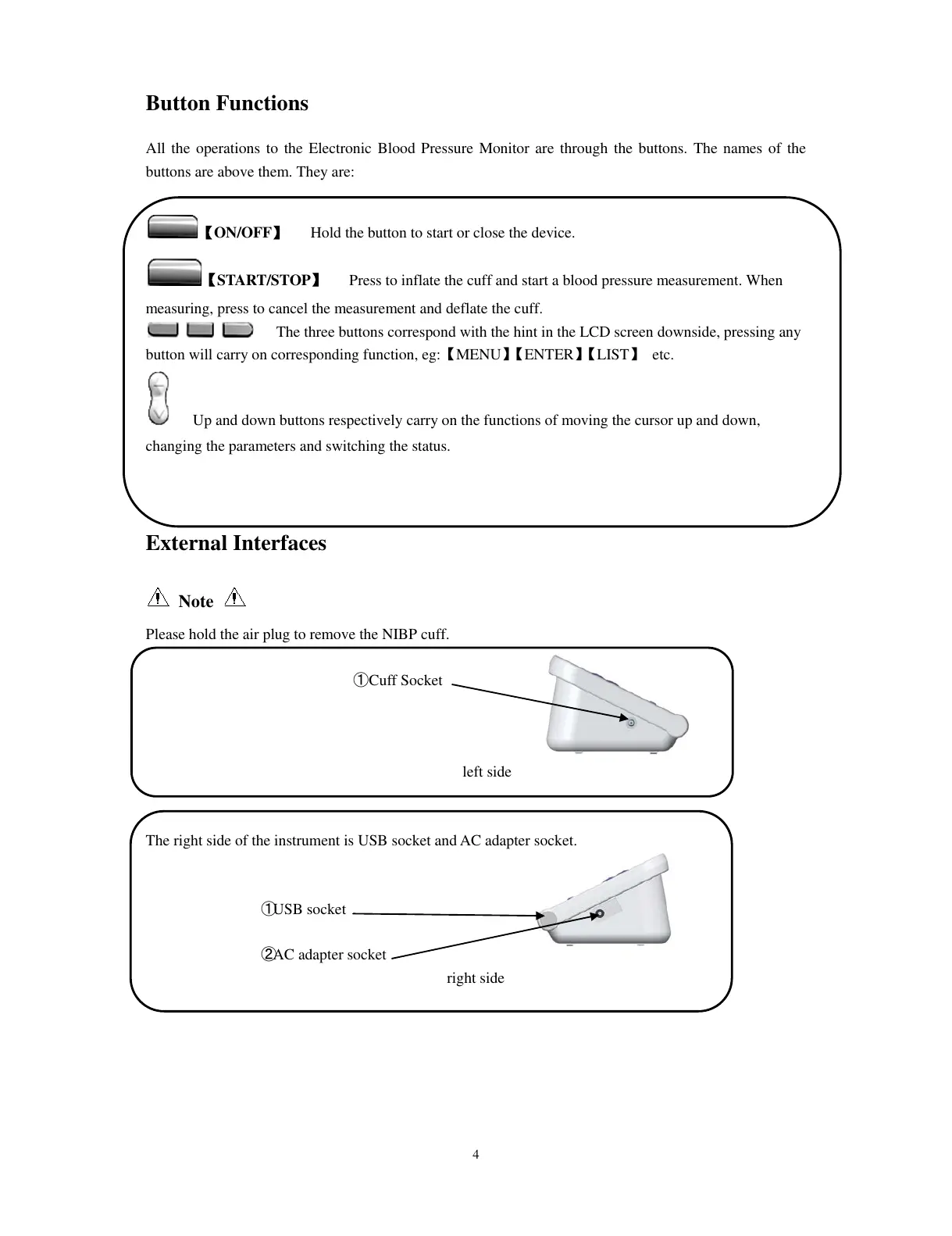

Button Functions
All the operations to the Electronic Blood Pressure Monitor are through the buttons. The names of the
buttons are above them. They are:
【ON/OFF】 Hold the button to start or close the device.
【START/STOP】 Press to inflate the cuff and start a blood pressure measurement. When
measuring, press to cancel the measurement and deflate the cuff.
The three buttons correspond with the hint in the LCD screen downside, pressing any
button will carry on corresponding function, eg:【MENU】【 ENTER】【 LIST】 etc.
Up and down buttons respectively carry on the functions of moving the cursor up and down,
changing the parameters and switching the status.
External Interfaces
Note
Please hold the air plug to remove the NIBP cuff.
① Cuff Socket
left side
The right side of the instrument is USB socket and AC adapter socket.
①USB socket
②AC adapter socket
right side
