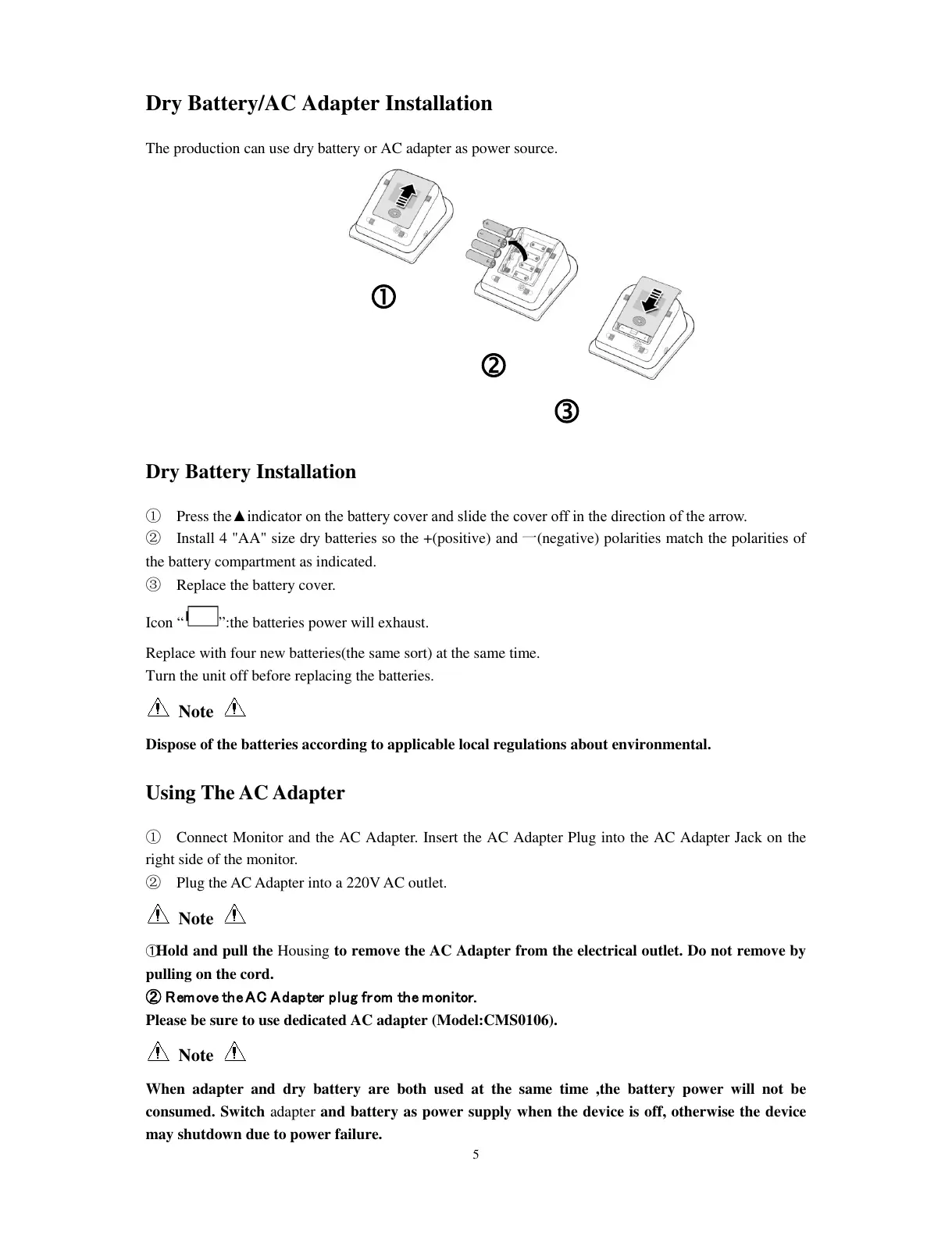

Dry Battery/AC Adapter Installation
The production can use dry battery or AC adapter as power source.
Dry Battery Installation
① Press the▲indicator on the battery cover and slide the cover off in the direction of the arrow.
② Install 4 "AA" size dry batteries so the +(positive) and 一(negative) polarities match the polarities of
the battery compartment as indicated.
③ Replace the battery cover.
Icon “ ”:the batteries power will exhaust.
Replace with four new batteries(the same sort) at the same time.
Turn the unit off before replacing the batteries.
Note
Dispose of the batteries according to applicable local regulations about environmental.
Using The AC Adapter
① Connect Monitor and the AC Adapter. Insert the AC Adapter Plug into the AC Adapter Jack on the
right side of the monitor.
② Plug the AC Adapter into a 220V AC outlet.
Note
①Hold and pull the Housing to remove the AC Adapter from the electrical outlet. Do not remove by
pulling on the cord.
② R em ove th e A C A d ap ter p l ug fr om th e m on i tor.
Please be sure to use dedicated AC adapter (Model:CMS0106).
Note
When adapter and dry battery are both used at the same time ,the battery power will not be
consumed. Switch adapter and battery as power supply when the device is off, otherwise the device
may shutdown due to power failure.
