3. Outside Dimensions and Part Names
16
User’s Manual
USB Touch Panel Connector
The USB connector for communication between the host computer
and touch panel.

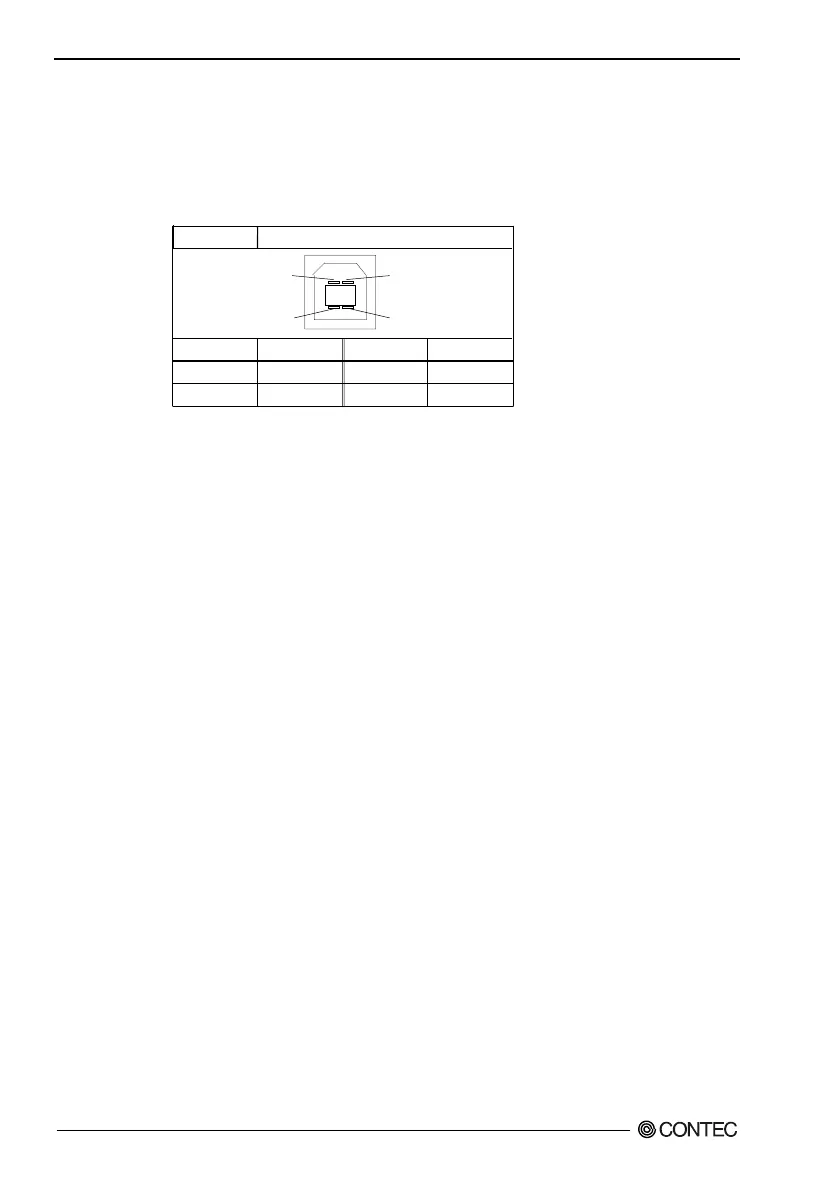

Table 3.3. USB Touch Panel Connector
Connector type
Pin No.
1
2
Pin No.
3
4
Signal name
+5V
DATA-
Signal name
DATA+
GND
USB Type B (Receptacle)
21
43
