4. Setting the Display
Installation Requirements
To maintain the ambient temperature within the installation
environment requirement range, provide a gap of 30mm or more
between the main unit and any adjacent equipment.
30mm or more(Side)
Interface surface
Bottom view
Panel
30mm or more(above)
30mm or more
(Bottom)
Side view
30mm or more(back)
Panel

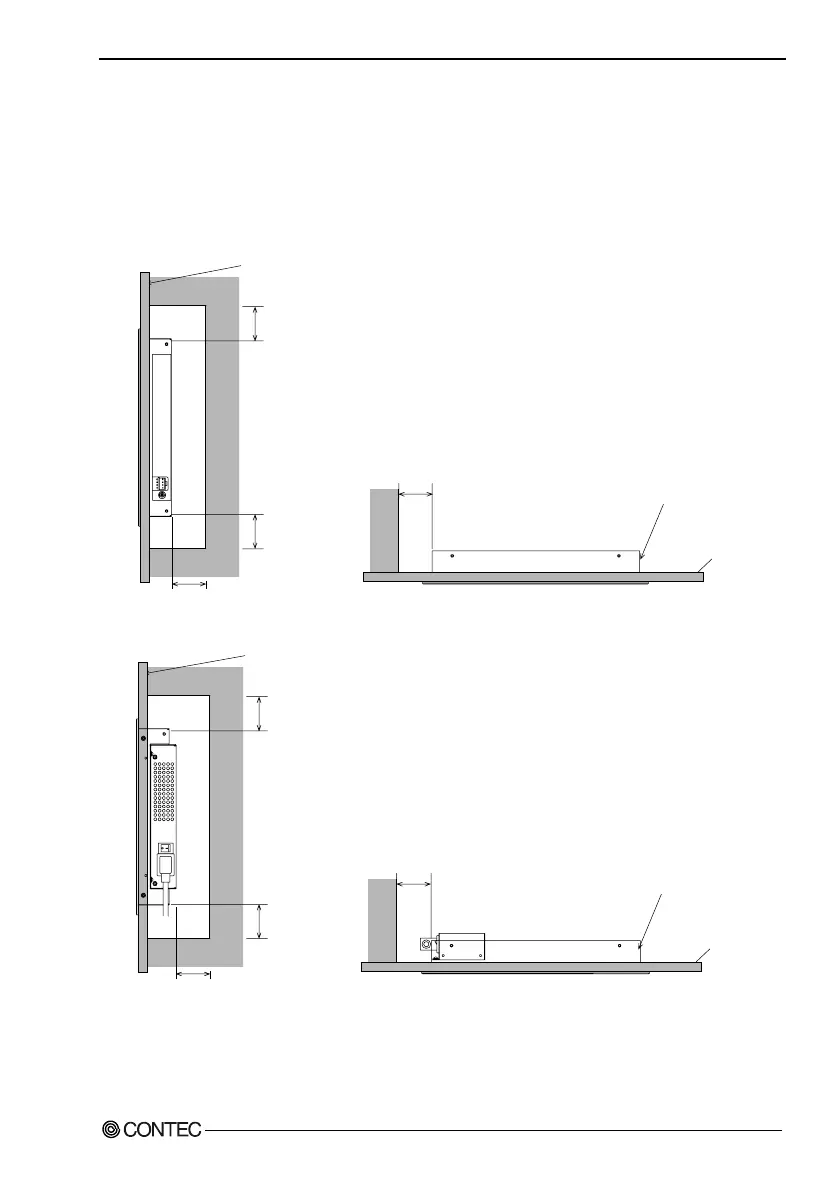

Figure 4.1. Distances between the FPD and Its Vicinity
30mm or more(Side)
Interface surface
Bottom view
Panel
30mm or more(above)
30mm or more
(Bottom)
Side view
30mm or more(back)
Panel
Figure 4.2. Distances between the FPD and Its Vicinity
(with Power Supply Unit IPC-POA200/12-01)
