Conti Monaco MC - CPU Board Steam Control

Edition 05/2021 - MC – Technical documentation - page 50
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.

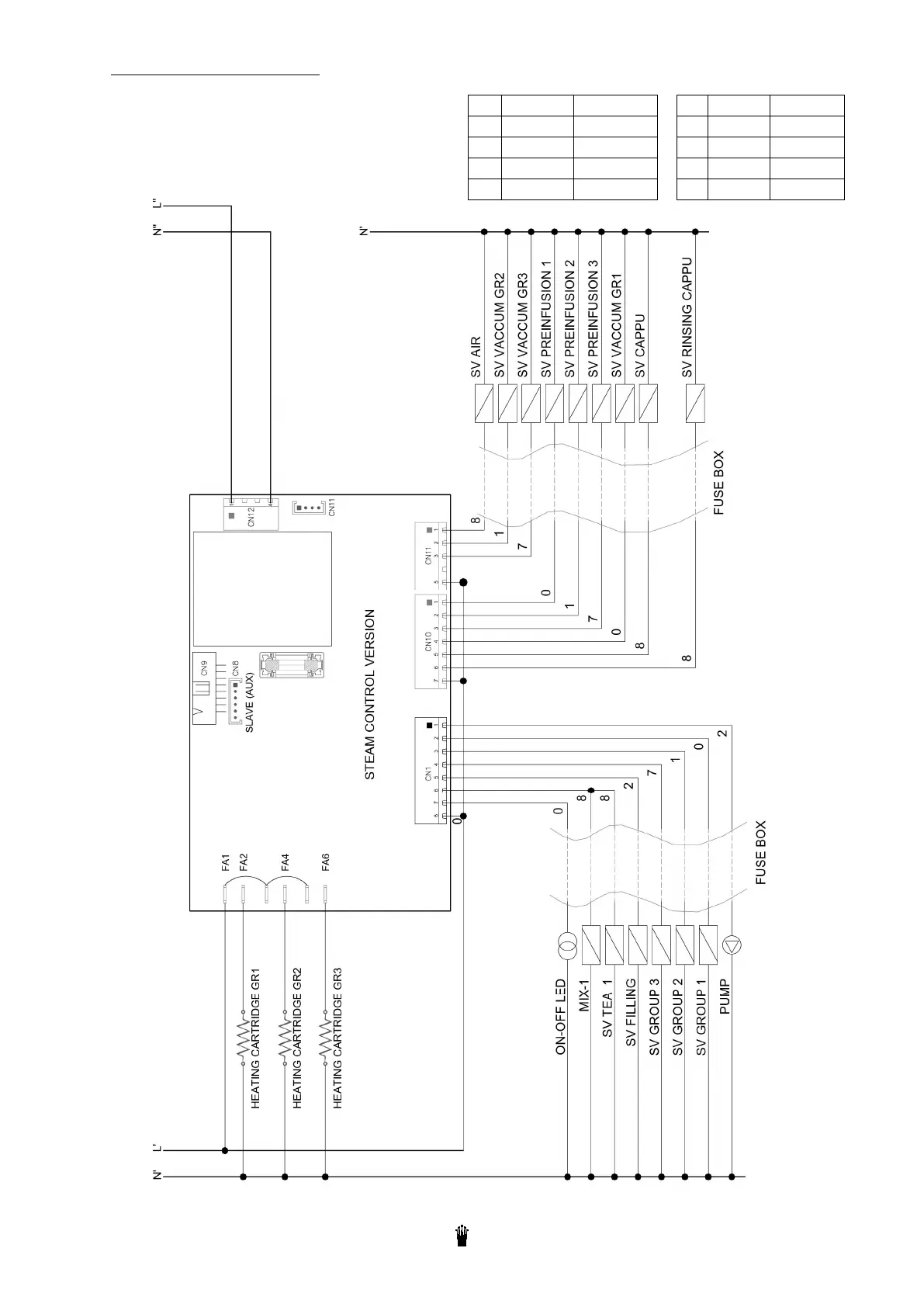

15.2 CPU board Steam Control
CODE COULEURS FILS
CABLE COLOUR CODE
1 marron
brown 6 bleu blue
2 rouge red 7 violet violet
3 orange orange 8 gris grey
4 jaune yellow 9 blanc white
5 vert green 0 noir black
