Control Techniques Commander SK Getting Started Guide

24 Commander SK Getting Started Guide
www.controltechniques.com Issue Number: 1
Safety
Information
Rating
Data
Mechanical
Installation
Electrical
Installation
Keypad and
Display
Parameters
Quick Start
Commissioning
Diagnostics Options
Parameter
List
UL Listing
Information

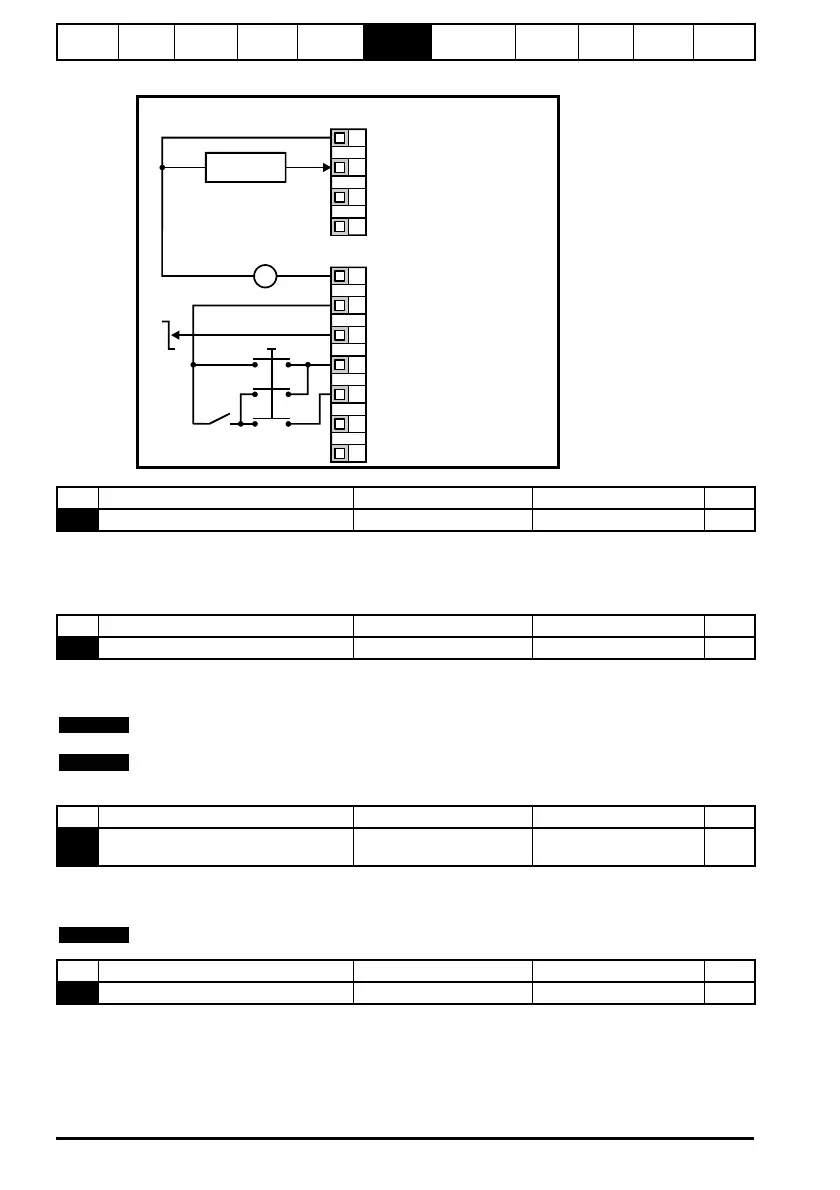

Figure 6-10 Pr 05 = HUAC terminal configuration
Enter the motor current rating (taken from the motor name plate).
The drive rated current is the 100% RMS output current value of the drive. This value
can be set to a lower value but not to a higher value than the drive rated current.
Enter the rated full load speed of the motor (taken from the motor name plate).
The motor rated speed is used to calculate the correct slip speed for the motor.
Enter the motor rated voltage (taken from the motor name plate).
This is the voltage applied to the motor at base frequency.
Enter the motor rated power factor cos ϕ (taken from the motor name plate).
0V
Remote current speed
reference input (A1)
+10V reference output
Not used
+24V output
Drive enable / reset
(USA: Not stop)
Run reverse
(USA: Jog)
Not used
Remote speed
reference input
V
_
+
EUR
Analog output
(motor speed)
Digital output
(zero speed)
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
+24V
0V
Auto
run
Hand/Off/Auto
switch
H
A
A
Run forward
(USA: Run)
H: Contacts made
in 'hand' position
A: Contacts made
in 'auto' position
No Function Range Defaults Type
06 Motor rated current 0 to Drive rated current A Drive rating RW
No Function Range Defaults Type
07 Motor rated speed 0 to 9999 rpm EUR: 1500, USA: 1800 RW
A value of zero entered into Pr 07 means slip compensation is disabled.
NOTE
If the full load speed of the motor is above 9999rpm, enter a value of 0 in Pr 07 . This will
disable slip compensation as values greater then 9999 cannot be entered into this parameter.
NOTE
No Function Range Defaults Type
08 Motor rated voltage 0 to 240, 0 to 480 V
EUR: 230 / 400
USA: 230 / 460
RW
If the motor is not a standard 50 or 60Hz motor, see Pr 39 on page 30 and adjust accordingly.
NOTE
No Function Range Defaults Type
09 Motor power factor 0 to 1 0.85 RW
