18 Commander SK Size 2 to 6 Getting Started Guide
www.controltechniques.com Issue Number: 2
3.2 Mounting methods
The Commander SK can be either surface or through-panel mounted using the appropriate brackets.
The following drawings show the dimensions of the drive and mounting holes for each method to allow the back plate to be prepared.
3.2.1 Surface mounting

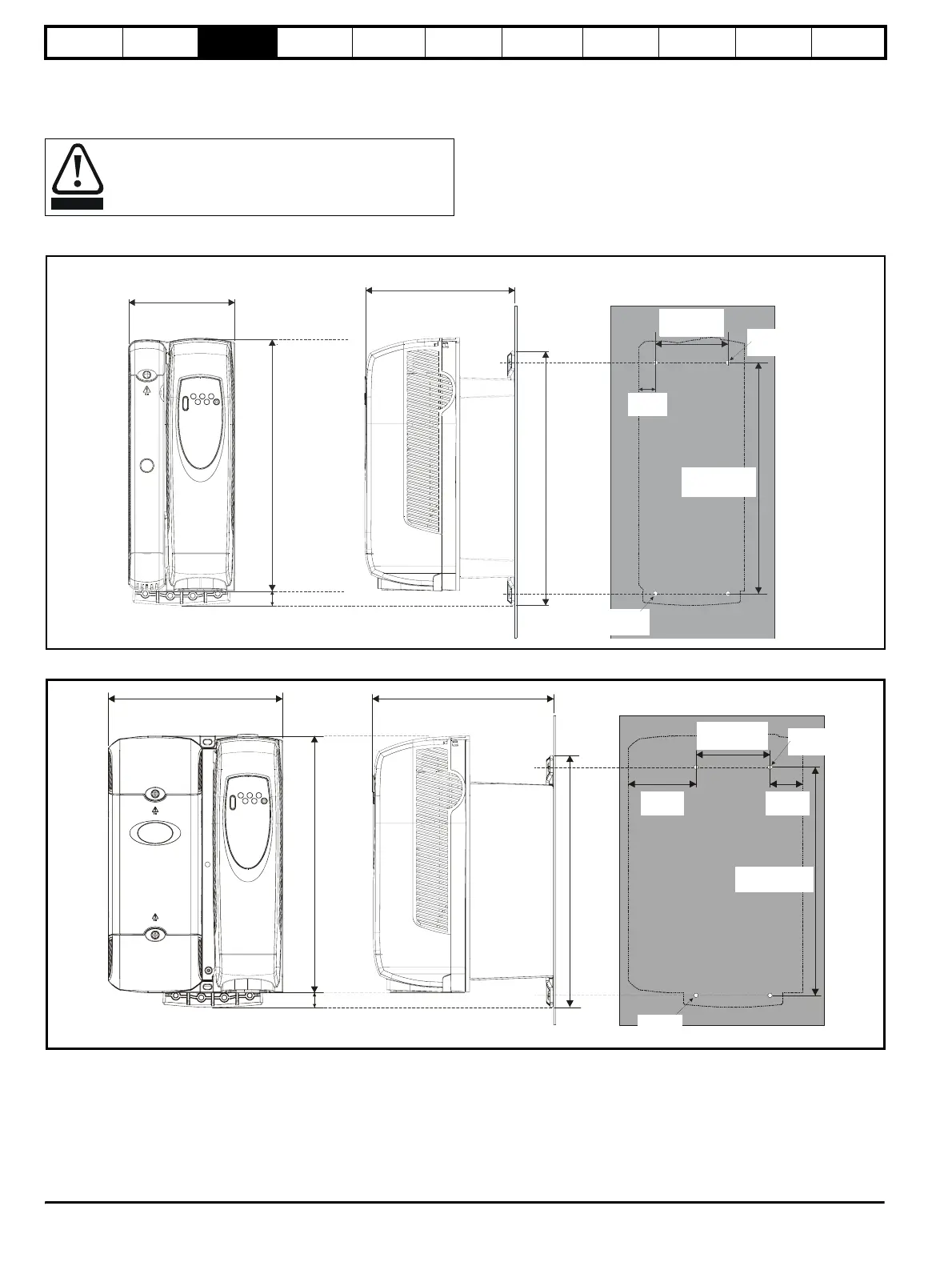

Figure 3-7 Surface mounting the size 2 drive
Figure 3-8 Surface mounting the size 3 drive
If the drive has been used at high load levels for a period of
time, the heatsink can reach temperatures in excess of 70°C
(158°F). Human contact with the heatsink should be
prevented.
WARNING
155mm
(6.102in)
368mm
(14.488in)
219
mm
(8.622in)
371.6mm
(14.630in)
∅ 6.5mm
(0.256in)
∅ 6.5mm
(0.256in)
21mm (0.827in)
337.5 1.0mm ±
(13.287 0.039in) ±
106 1.0mm ±
4.173 0.039in ±
24.5mm
(0.965in)
250mm
(
9.843in
)
368mm
(14.488in)
260mm
(
10.236in
)
361mm
(14.213in)
∅ 6.5mm
(0.256in)
21mm (0.827in)
327 1.0mm
(12.874 0.039in)
±
±
∅ 6.5mm
(0.256in)
106 1.0mm
(4.173 0.039in)
±
±
97mm
(3.819in)
47mm
(1.850in)
