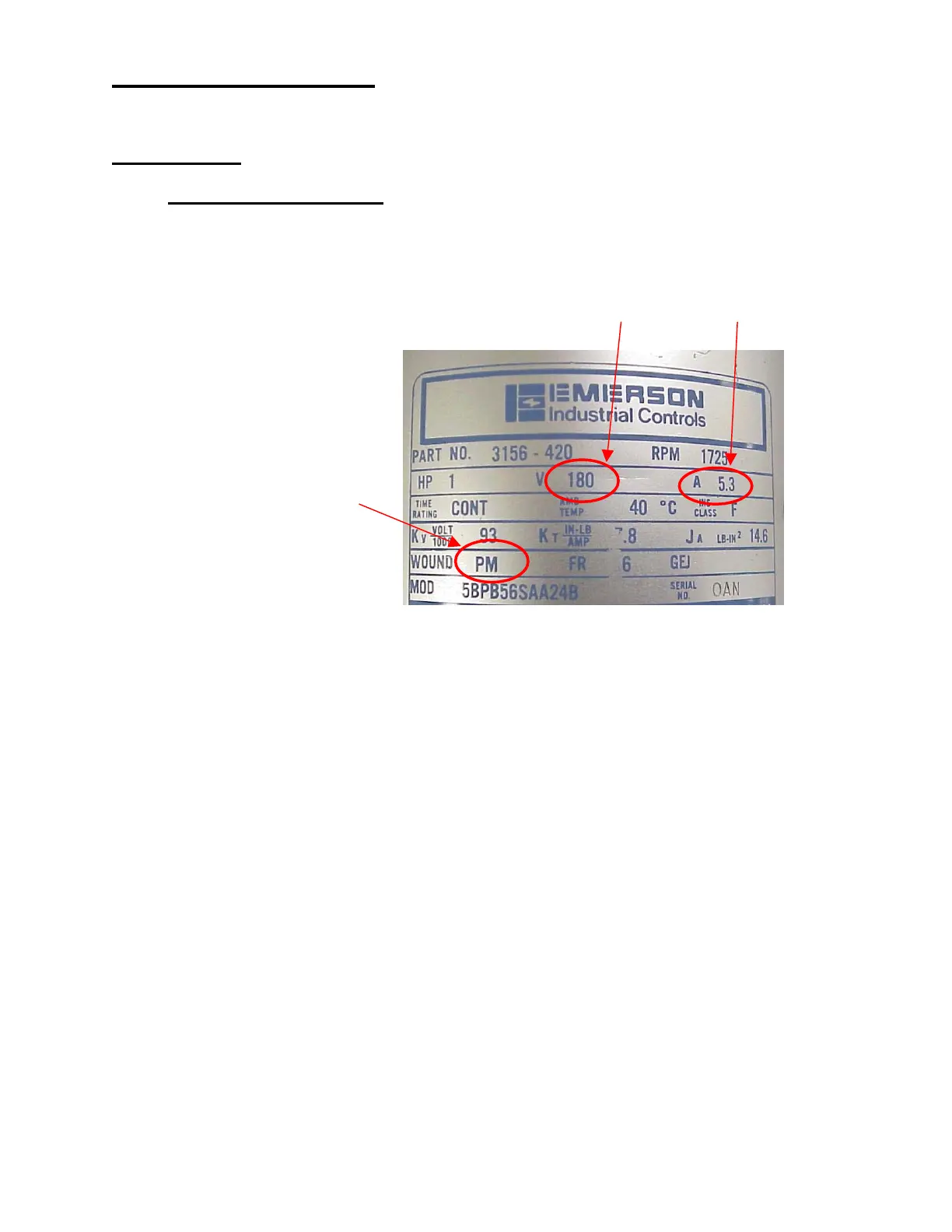

Motor Compatibility
Motors with:
Permanent Magnet Motors typically have only 2 power wires. These are the Armature
leads and typically designated A1 and A2 or A+ and A-. The Focus 1 is compatible
with most all PM motors having either 90v or 180v armatures.
Armature
Voltage
Armature
Current
Permanent
Magnets
