Page 15
The Focus 1 comes in two basic model variations- with and without enclosure.
Chassis Model
The model without an enclosure is denoted as a chassis model. The chassis model is
intended for mounting within a User supplied cabinet and where the User intends to
provide remote Start/Stop and Speed control signals.
Enclosed Model
The Enclosed version comes to you already in a NEMA 1 enclosure that would allow the
User to mount the Focus on a wall or machine surface. The Enclosed version has a
Power On/Off and spring to center Start/Stop switches and the Speed Control
adjustment on the front cover for convenient operation.

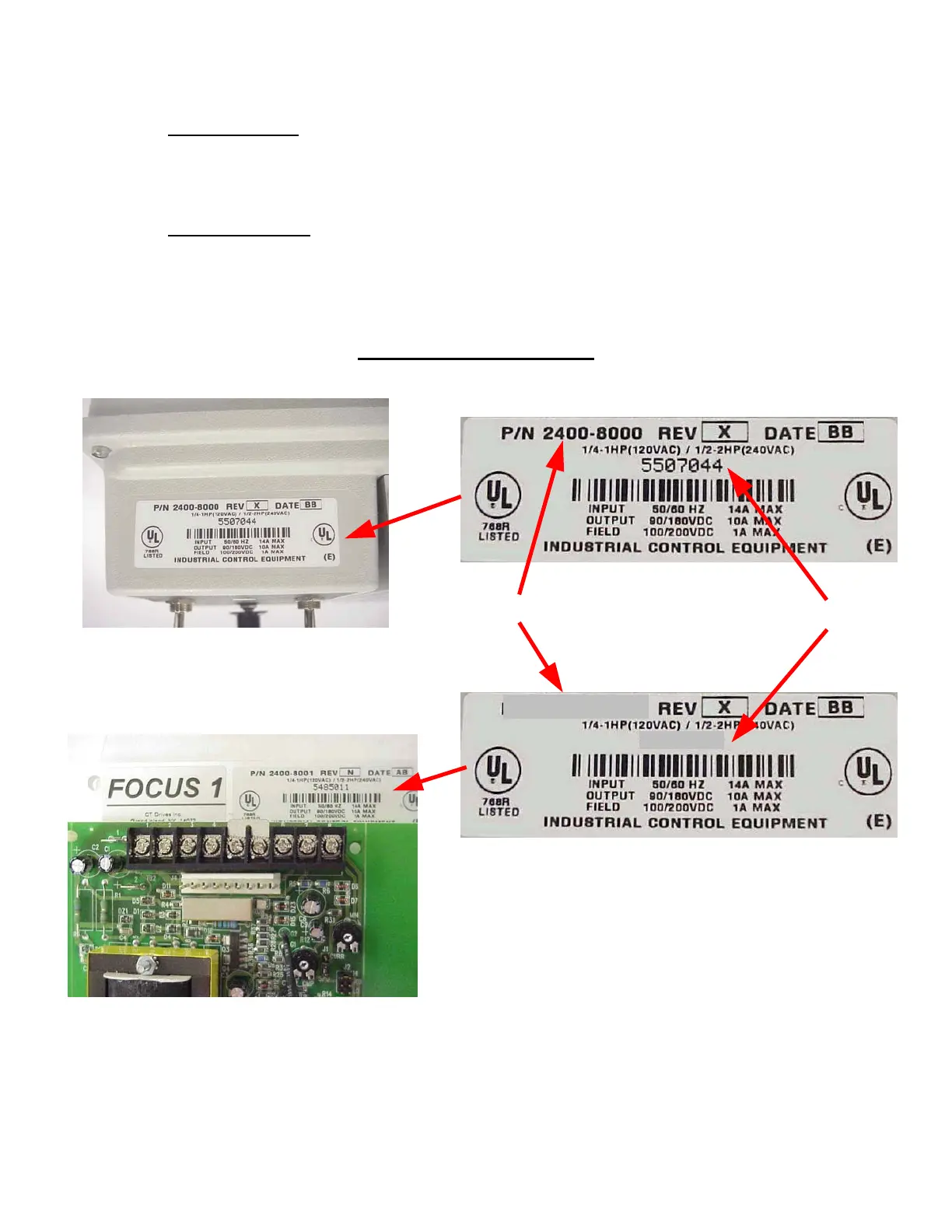

Nameplate Information
Enclosed Unit
Chassis Unit
Part #
Serial #
Always record the drive Model Number, Part
Number and Serial Number for future
warranty situations and spare parts. A good
location to record these is on the Start-up
Guide Worksheet on page #41.
P/N 2400-8001
5507051
