Page 34

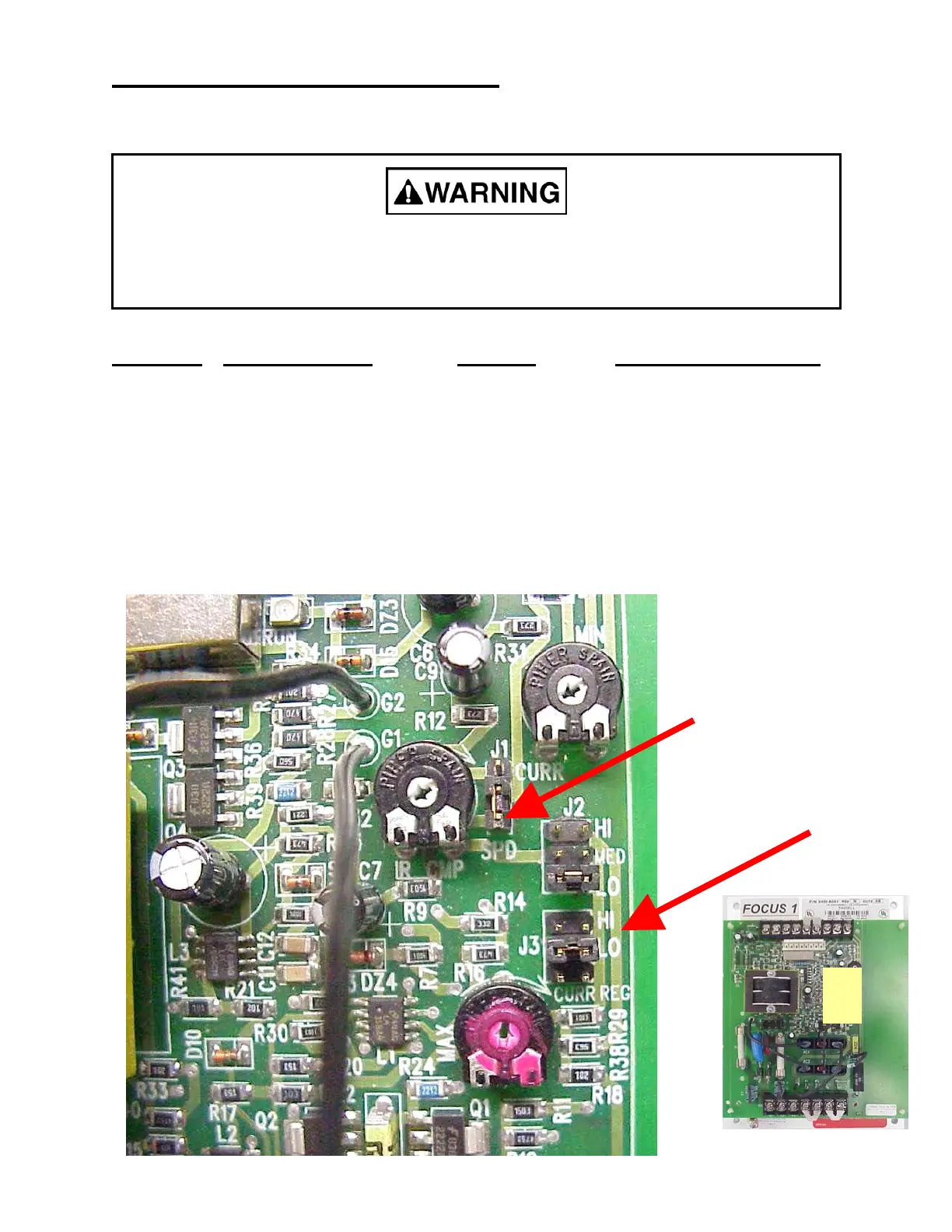

Customer Jumper Selections
Jumper Programming
See page 33 for jumper locations
JUMPER DESCRIPTION RANGE FACTORY SETTING
J1 Speed or Current Control Speed or Current Speed
Mode (see next page) (SPD) (CUR)
J3 Armature Voltage LOW (90 Vdc) or HI (180 Vdc)
Level Selector HI (180 Vdc)
Use care when setting J3 as the upper 2 pins are to be set when J1 is in
the SPD position.
Equipment damage and/or personal injury may result if jumper programming is
attempted while control is operational. Always lock out power at the remote
disconnect before changing jumper positions.
J1
J3
To Next Page
