Page 33
Cable should be 3 conductor with overall shield w/pot end
tied off and dressed. Cable and pots are available from:
Control Techniques Service Center @ 1-800-367-8067
Cable P/N 3CONCBL-XXX (XXX in feet)
Speed Potentiometer P/N SpdPot

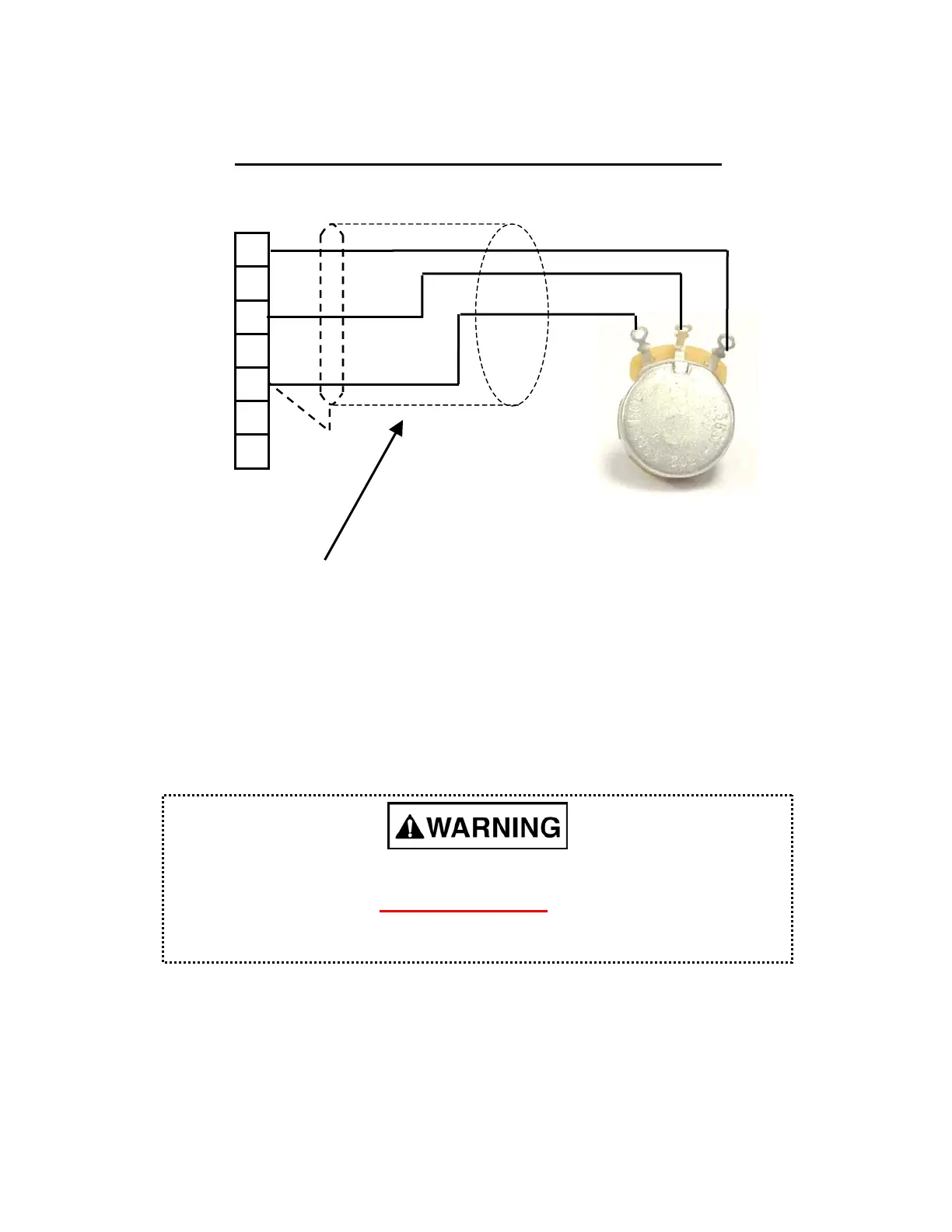

Standard Unipolar Speed Potentiometer Wiring
Do Not Connect shield to Earth. This will result in permanent damage
to the Drive and will not be covered under WARRANTY
CCW=counter
clockwise
Wiper
CWCCW
6
7
8
+10vdc
Speed
Command
Common/
Min Speed
Speed Pot
Rear View
