Page 32

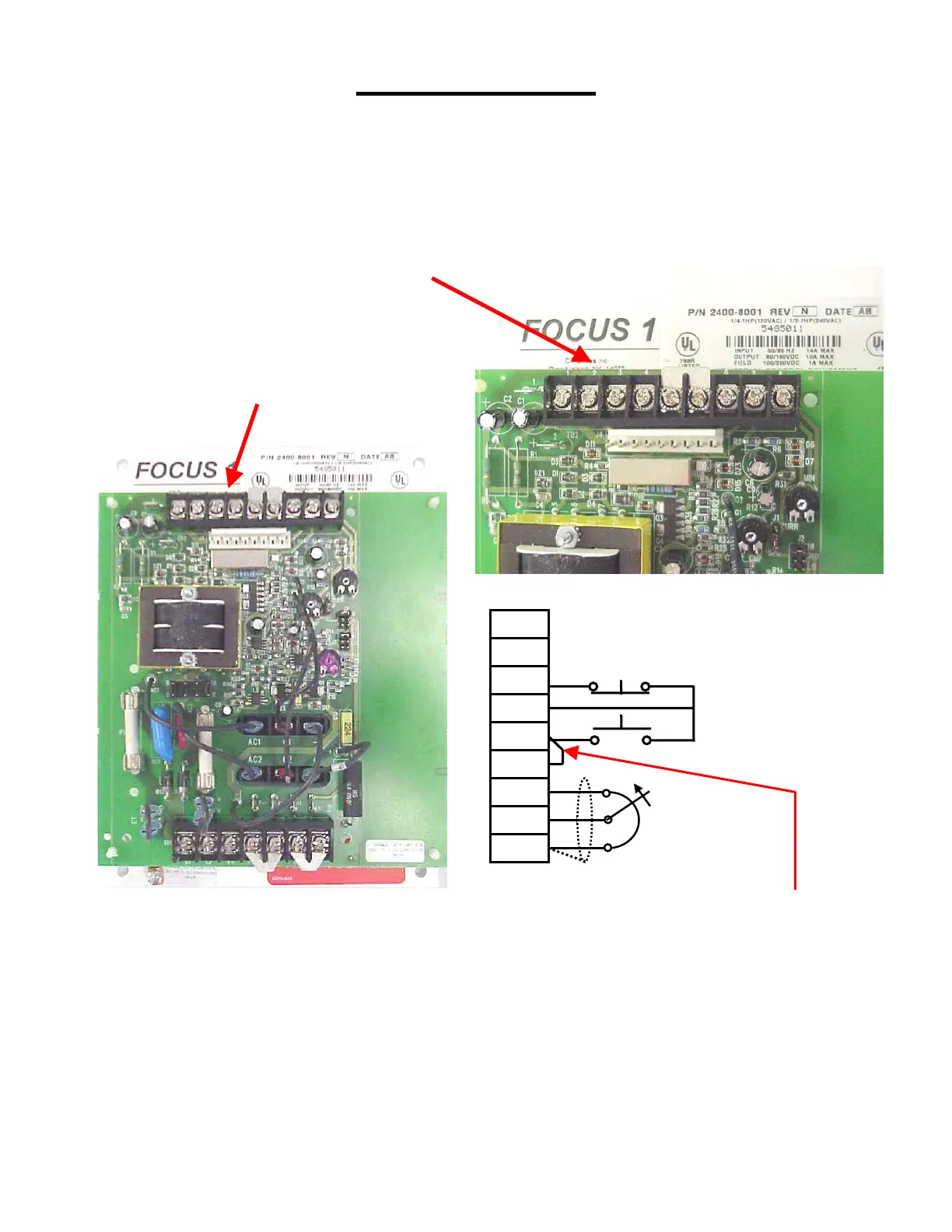

Chassis Model
The Chassis Model has no
operator devices connected to
the drive control terminal strip.
The only connections made
are connections from terminal
#3 to #4 which is required for
three wire Start/Stop controls.
The Speed Potentiometer is
supplied “loose” with the drive.
1
2
6
3
4
5A
5
7
8
Stop
Start
Stop
Potentiometer
Drive will not start without
this. This is intended for
system interlock- see
Application Safety
