Page 35
Input Voltage Selection
Input Line Voltage Jumper Positions
120Vac A to E and B to D
240Vac
A to C and B to C
Items in BOLD RED are factory set positions
Caution
Application of 240vac to a unit set up for 115vac ( as shown above )
will damage the drive and void the warranty.

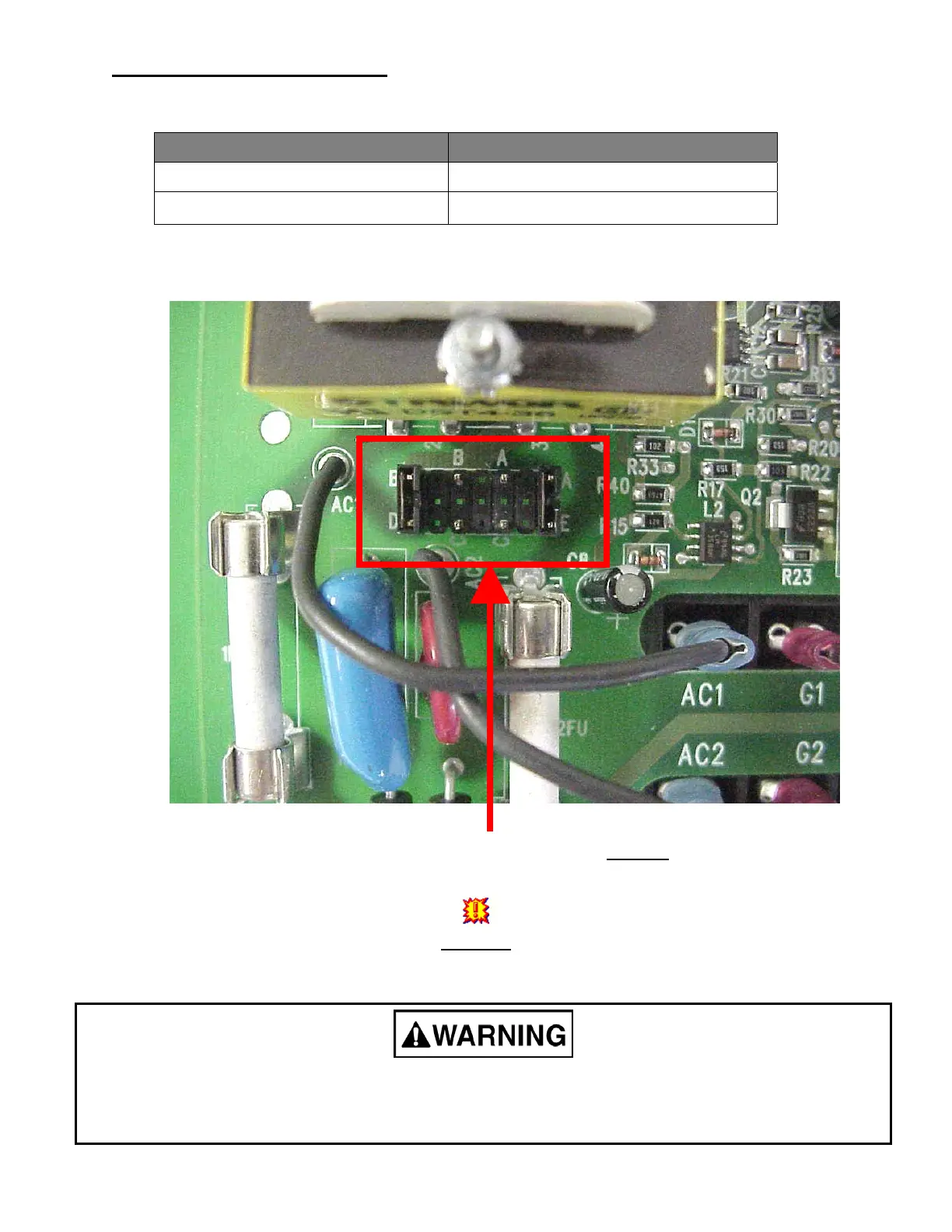

This photo shows the drive settings for 115vac operation
When making any wiring or jumper changes, the incoming AC power must be turned of
and locked out. Hazardous voltages will be present until the AC power is turned off. The
drive contactor ( if used ) does not remove hazardous voltages when opened.
To Next Page
