Control Techniques Emerson Focus 1 User Manual

Page 36

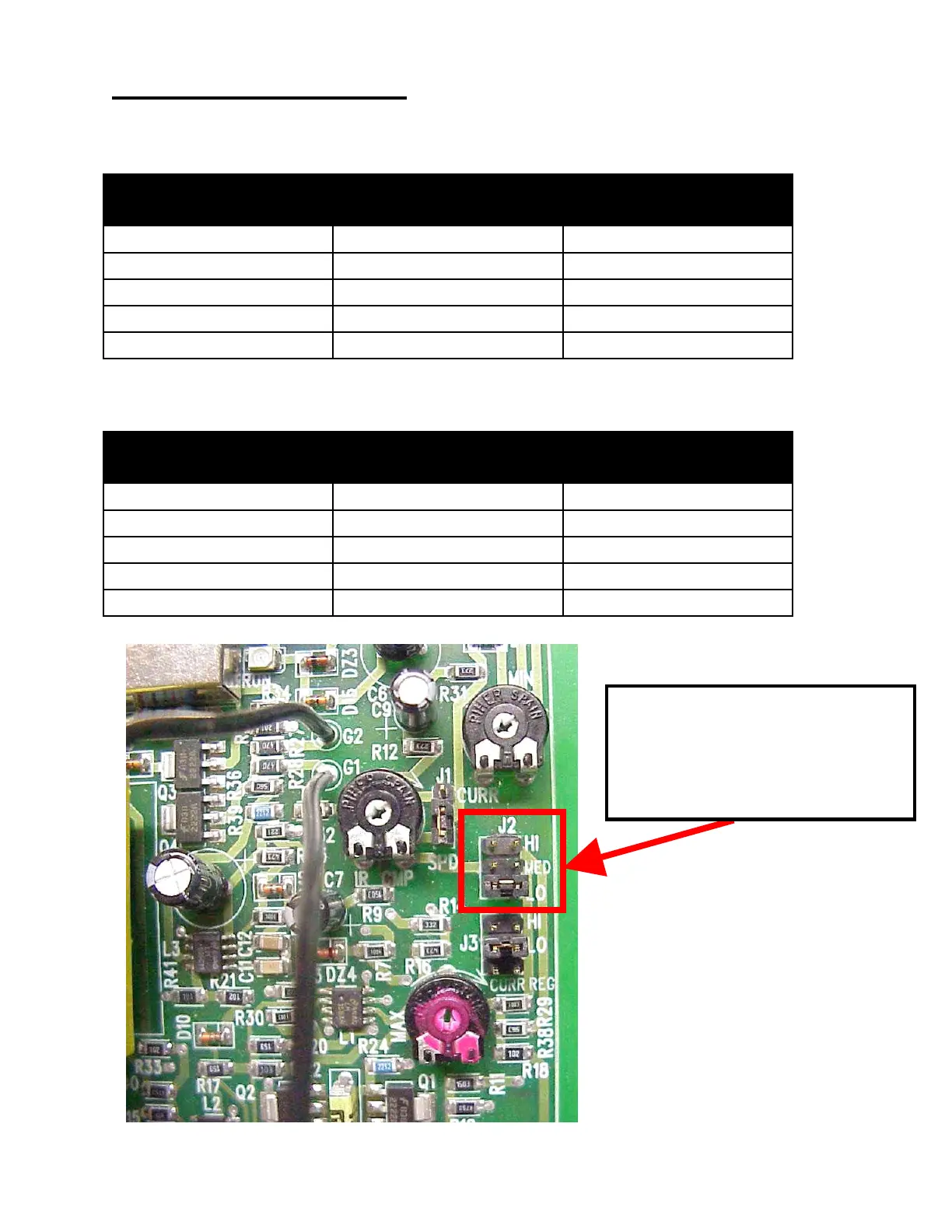

Current Feedback Range (J2)
For 115vac Operation on 90vdc motors
Motor HP DC Output Current J2
Range (Amps) Jumper Position
1/4 2.6 Lo
1/3 3.7 Lo
1/2 5.5 Lo
3/4 7.5 Med
1 10 Hi
For 230vac Operation on 180vdc motors
Motor HP DC Output Current J2
Range (Amps) Jumper Position
1/2 2.6 Lo
3/4 3.7 Lo
1 5.5 Lo
1-1/2 7.5 Med
2 10 Hi
J2 -- Max Output Current
Select based on motor
Armature requirements
