Epsilon EP-I Indexing Drive and FM-2 Indexing Module Reference Manual

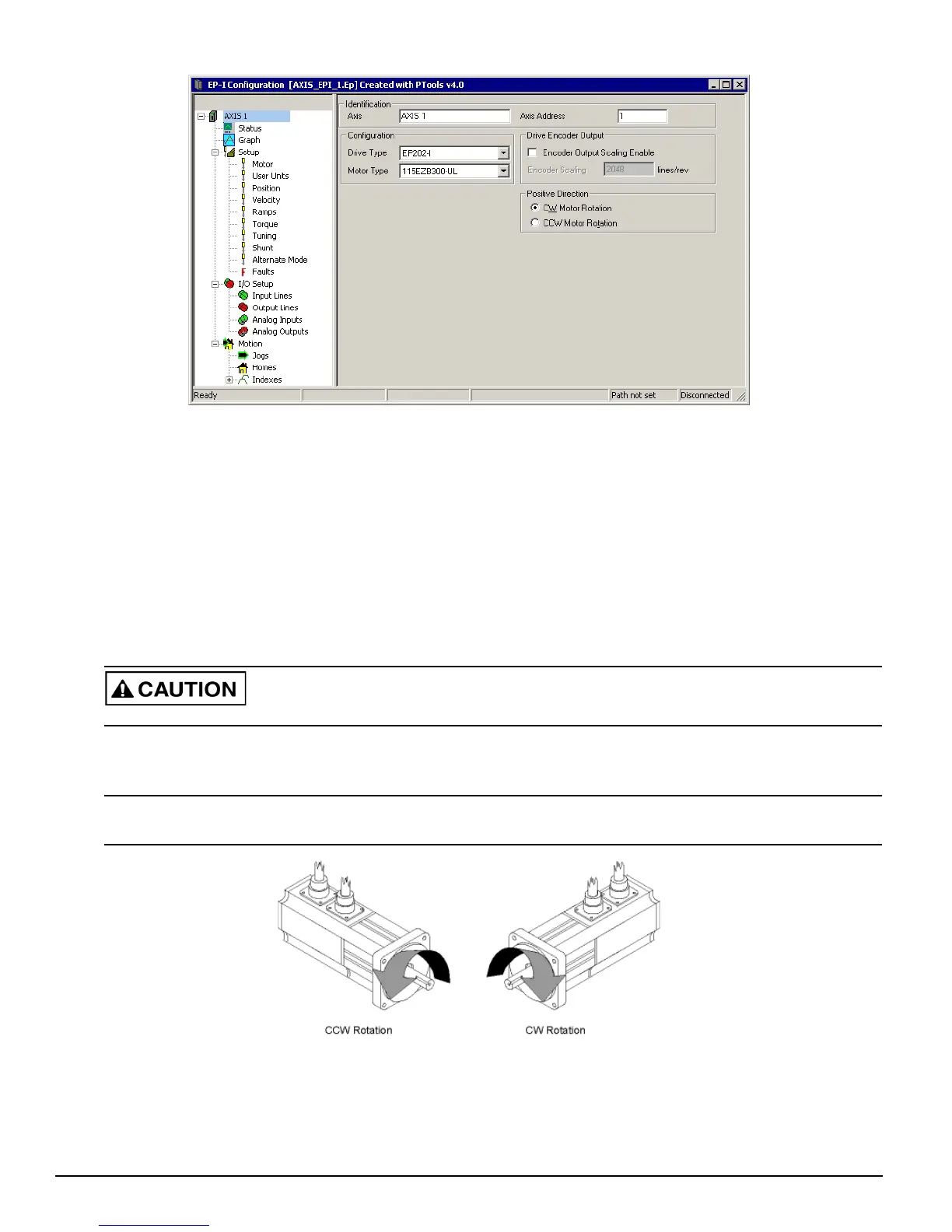

Figure 86: Setup View
Entering Identification Parameters:
1. Enter an axis identifying name for the drive you are setting up. You can use up to 24 alpha-numeric characters.
2. Enter the Axis Address to which you wish to download the setup information. Unless you have changed the Modbus
address of your device, leave this parameter set to the default value of 1.
Entering Configuration Parameters:
1. Click the down arrow of the Drive Type list box, then select the drive model of the drive you are currently setting up.
2. Click the down arrow of the Motor Type list box, then select the motor connected to the drive you are setting up.
Selecting the wrong motor type can cause poor performance and may even damage the motor and/or drive.
Entering Positive Direction Selections:
Click which direction, clockwise (CW) or counterclockwise (CCW), to be considered as motion in the positive direction.
Note
CW and CCW rotation is determined by viewing the motor from the shaft end.
Figure 87: Motor Rotation
