Home Offset Examples
The following three home cycle examples each use a different offset method or value.
Example 1: Calculated Offset
In the example below, a calculated offset is used.

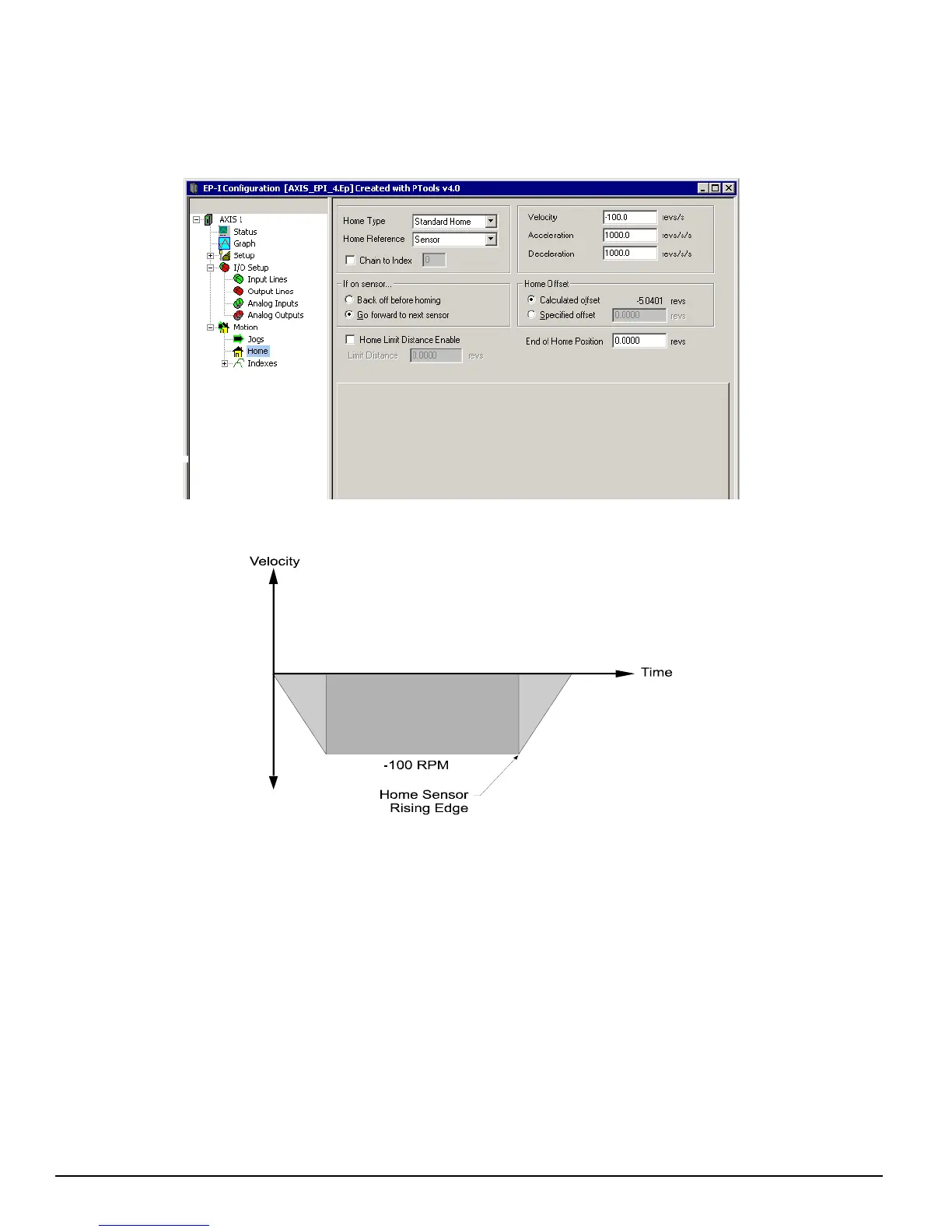

Figure 45: Calculated Offset Screen
Figure 46: Calculated Offset
Example 2: Specified Offset, Greater than Calculated Offset
In the example below the specified offset is larger than the calculated offset. This causes the axis to continue on at speed
before decelerating and stopping at the offset position.
