Fuses fitted to the FXM5 controller printed-circuit board are as follows:
3.5 Access to the power and signal connectors
Remove the four corner screws and the front cover. The connectors are mounted on the
printed-circuit board which is now exposed.

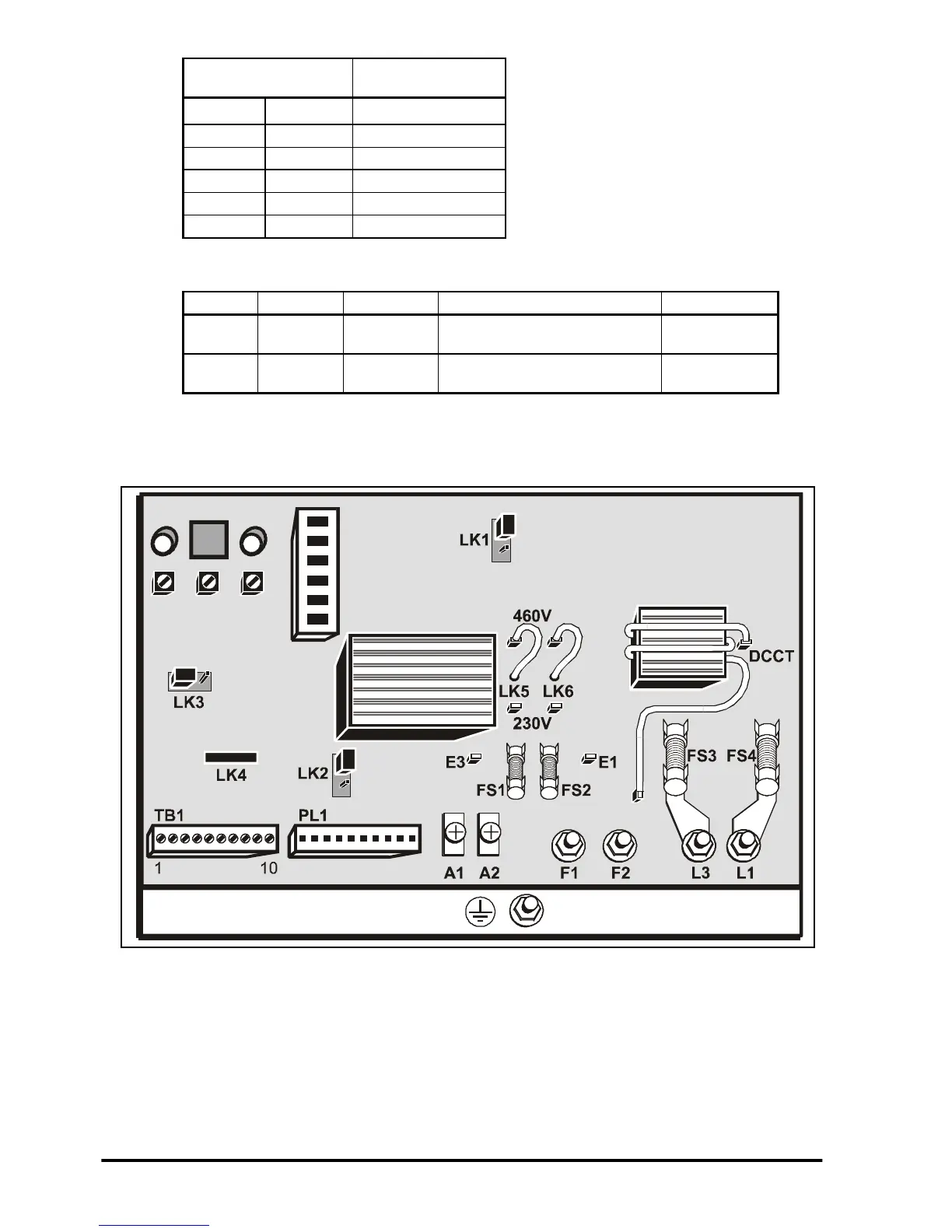

Figure 3-2 Locations of the ground, power and signal connectors, fuses and
jumpers
Cable size Maximum current
and fuse rating
mm
2
AWG A
1.0 18 2
1.5 16 5
2.5 14 10
4.0 10 20
4.0 10 20
Fuse Rating Type Protects... CT Part number
FS1
FS2
500mA 30mm Control-circuits power supply 3537-3251
FS3
FS4
20A HRC Thyristor bridge and field
weakening
3537-3252
