Control Techniques Unidrive 1 Series User Manual

Safety
Information
Product
Information
Mechanical
Installation
Electrical
Information
Getting
Started
Menu 0
Running
the motor
Optimisation Macros
Advanced
Parameters
Technical
Data
Diagnostics
UL Listing
Information
Unidrive User Guide 19
Issue Number: 9 www.controltechniques.com

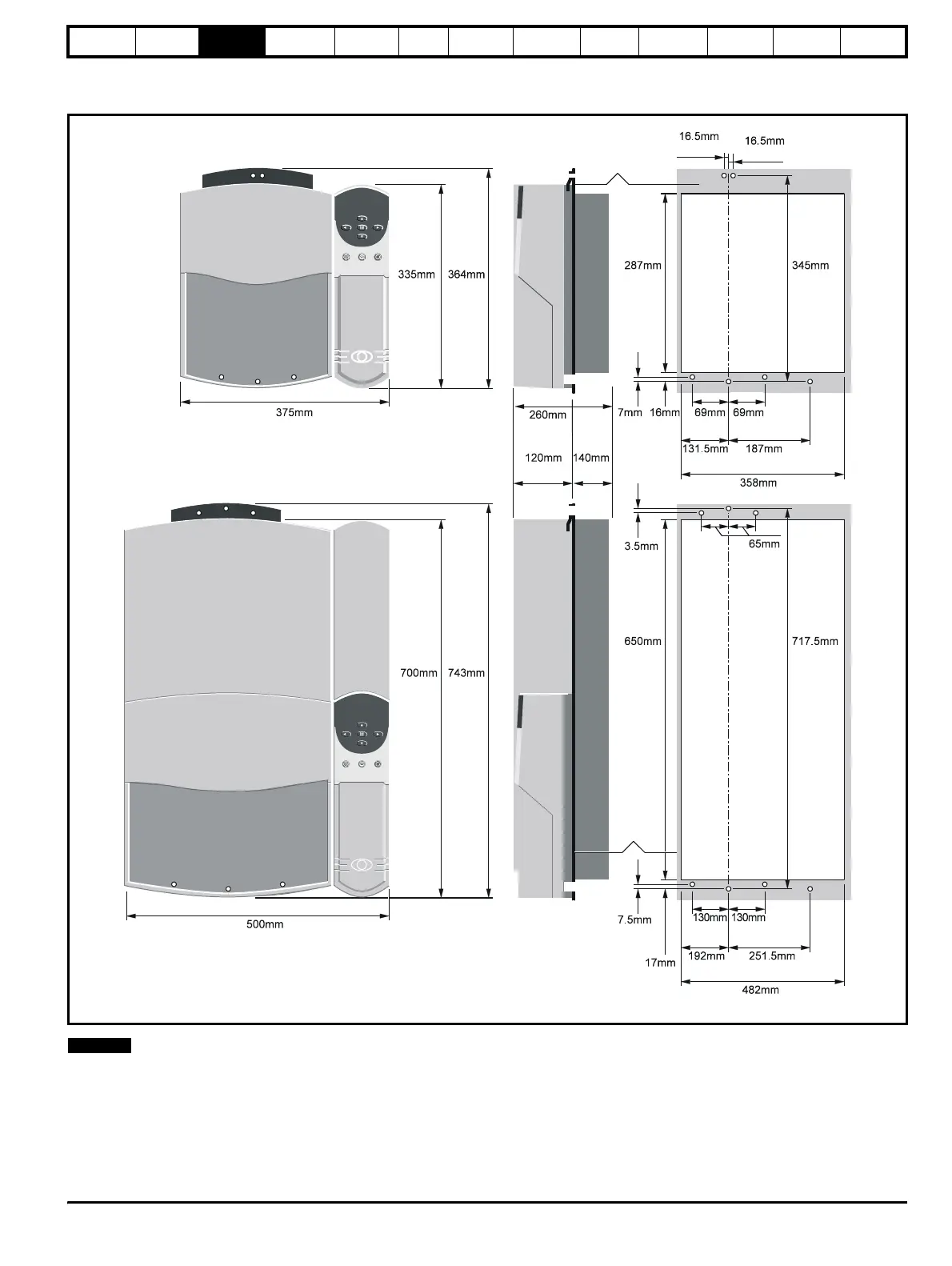

Figure 3-9 Through-panel mounting of model sizes 3 and 4
N
When drives are through-panel mounted, a baffle plate is required to
ensure the correct level of air-flow is maintained through the heatsink.
For further information, please refer to section 3.9 Baffle plates on
page 28.
Model
size 3
Model
size 4
Back-plate
Back-plate
13.583in
0.650in
0.650in
11.299i n
13.189in 14.331in
14.764in
10.236in
4.724in 5.512in
2.717in2.717in
5.177in 7.362in
14.094in
19.685in
27.559in 29.252in
0.138in 2.559in
25.591in 28.248in
0.295in
5.118in 5.118in
0.669in
7.559in 9.902in
1
8
.
9
72in
0.276
in
0.630
in
NOTE
