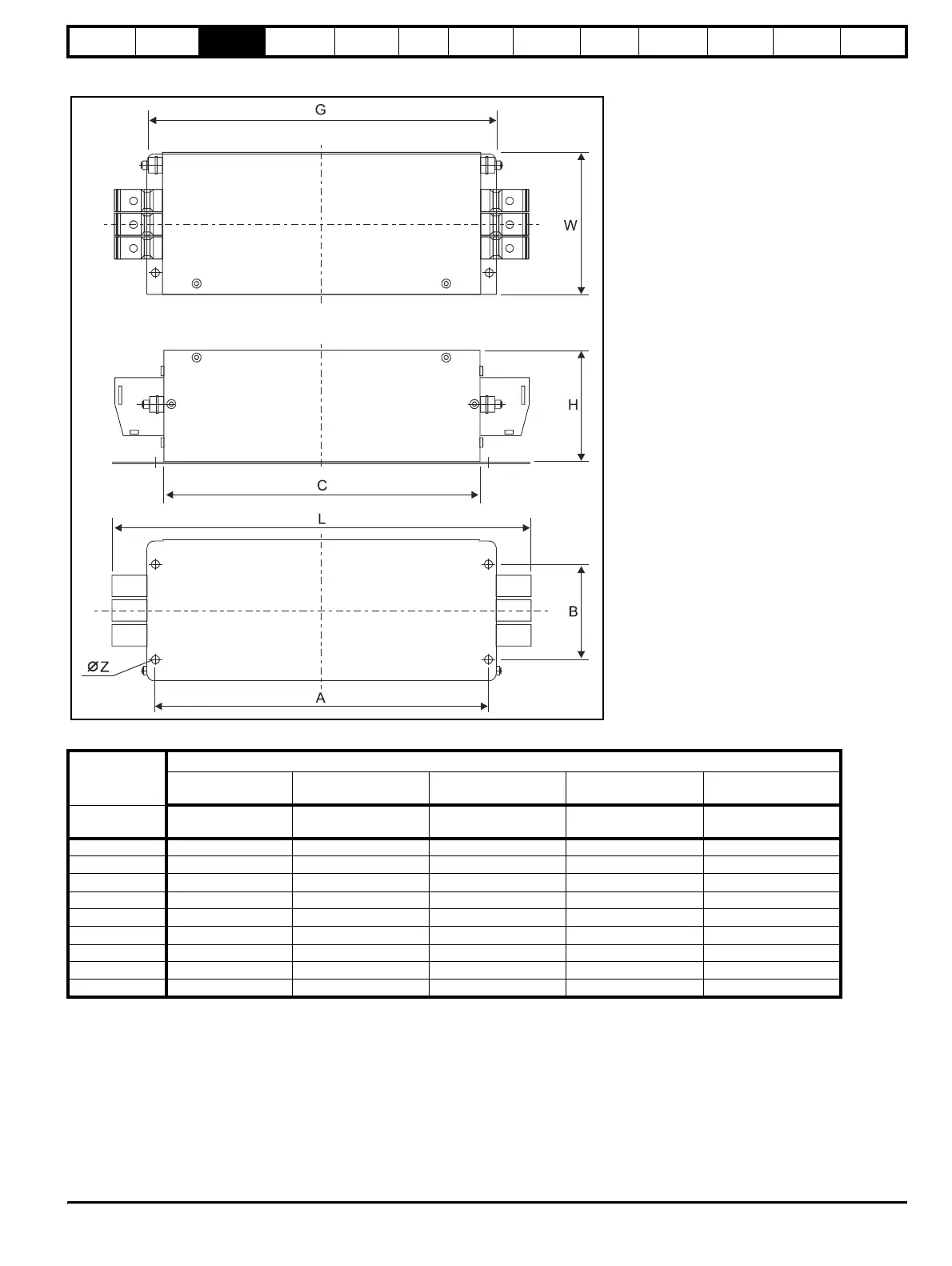

Figure 3-27 Unidrive size 3 (UNI3203 to UNI3204, UNI3404 to UNI3405) & size 4 bookcase mounted filter
Dimension
RFI Filters
4200-6117
FS5113-63-34
4200-6106
FS5113-100-35
4200-6107
FS5113-150-40
4200-6111
FS5113-180-40
4200-6112
FS5113-220-37
Model
UNI3203
UNI3404
UNI3204
UNI3405
UNI4401 to UNI4402 UNI4403 to UNI4404 UNI4405
A 315mm (12.402in) 310mm (12.205in) 330mm (12.992in) 420mm (16.535in) 420mm (16.535in)
B 105mm (4.134in) 105mm (4.134in) 120mm (4.724in) 110mm (4.331in) 110mm (4.331in)
C 300mm (11.811in) 294mm (11.575in) 314mm (12.362in) 400mm (15.748in) 375mm (14.764in)
G 330mm (12.992in) 325mm (12.795in) 345mm (13.583in) 440mm (17.323in) 440mm (17.323in)
H 103mm (4.055in) 107mm (4.213in) 135mm (5.315in) 157mm (6.181in) 157mm (6.181in)
L 377mm (14.843in) 380mm (14.961in) 414mm (16.299in) 502mm (19.764in) 523mm (20.591in)
W 150mm (5.906in) 150mm (5.906in) 150mm (5.906in) 170mm (6.693in) 170mm (6.693in)
Z 7mm (0.276in) 7mm (0.276in) 7mm (0.276in) 8.5mm (0.335in) 8.5mm (0.335in)
Ground Terminal M6 M8 M10 M12 M12
