Unidrive User Guide 87
Issue Number: 9 www.controltechniques.com
Mot X XXXXXXXXX
No XXXXXXXXXX kg
IP55 I.cl F C 40 s S1
°
VHzmin
-1
kW cos
φ
A
230
400
50 1445 2.20 0.80 8.50
4.90
CN = 14.5Nm
240
415
50 1445 2.20 0.76 8.50
4.90
CN = 14.4Nm
CTP- VEN 1PHASE 1=0,46A P=110W R.F 32MN
I.E.C 34 1(87)
0.02
t
100Hz
0.03
t
0.04
Select OPEN
LOOP mode
of operation
Set maximum / minimum speed.
Enter motor nameplate details.
Set acceleration / deceleration rates.
When entering the motor nameplate details, max/min speeds and acceleration/deceleration
rates, click on the relevant field, enter the value here and click ‘Change’

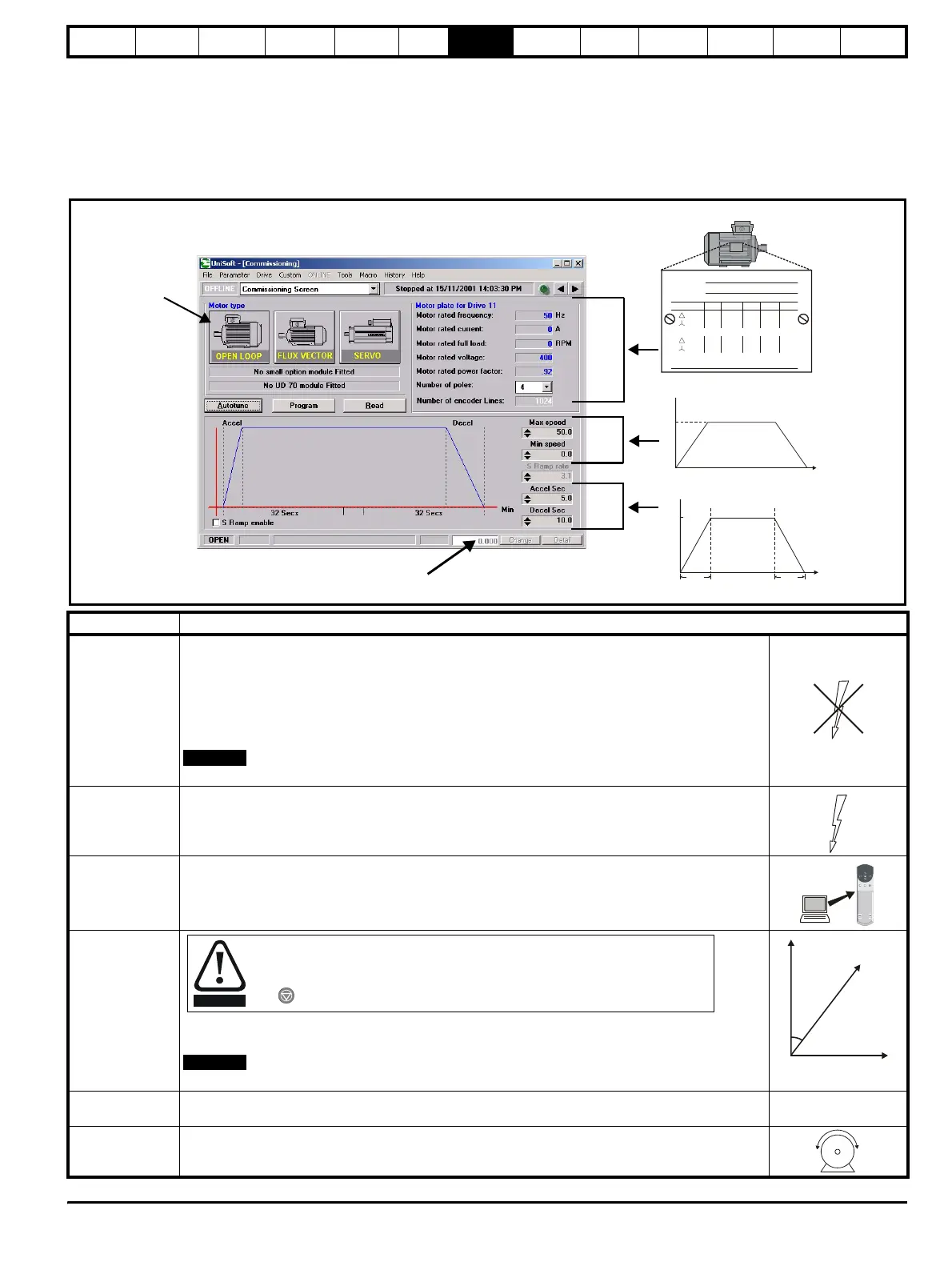

7.3 Quick start P.C. commissioning (UniSoft / VTCSoft)
This section details how to get the motor running using Unisoft or VTCsoft pc commissioning software in each operating mode and with the various
feedback devices.
Unisoft or VTCsoft is available free of charge and can be downloaded from www.controltechniques.com.
7.3.1 Open Loop
Induction motor without feedback device
Please refer to the documentation that came with UniSoft or VTCSoft for instructions on how to install the drive commissioning software.
Action Detail
Before power-up
Ensure:
• Enable is closed (terminal 30)
• Motor thermistor is connected or terminal 8 is linked to 0V
• Run signal is not given
• Motor is connected
• A UD71 serial communications module is fitted and is connected to the PC running UniSoft with the
above screen displayed
The motor must be uncoupled from any gearbox or load before an autotune is carried out.
Power-up the
drive
Ensure:
• Drive displays ‘inh’. If the drive trips, refer to Chapter 12 Diagnostics on page 198.
Program the drive Click ‘Program’ to upload the values to the drive.
Autotune
• Click ‘Autotune’ to enable the drive to perform the autotune
If the drive trips, see Chapter 12 Diagnostics on page 198.
The motor must be uncoupled from any gearbox or load before an autotune is carried out.
Saving
parameters
In the 'Tools' menu select 'Save parameters in drive'. UniSoft will ask whether you want to save
parameters in the drive when UniSoft is closed.
Run Drive is now ready to run
NOTE
Once this parameter is set, the motor will accelerate up to
2
/
3
base frequency
without a run command being given. Once the measurement is complete, the
motor will coast to a stop. The drive can be disabled at any time by pressing the
red button.
WARNING
NOTE
cos = ?
∅
