Convotherm OEB Series User Manual

Service manual OEB/OES/OGB/OGS
5_00e Troubleshooting list_L 23/27 2013-01-30

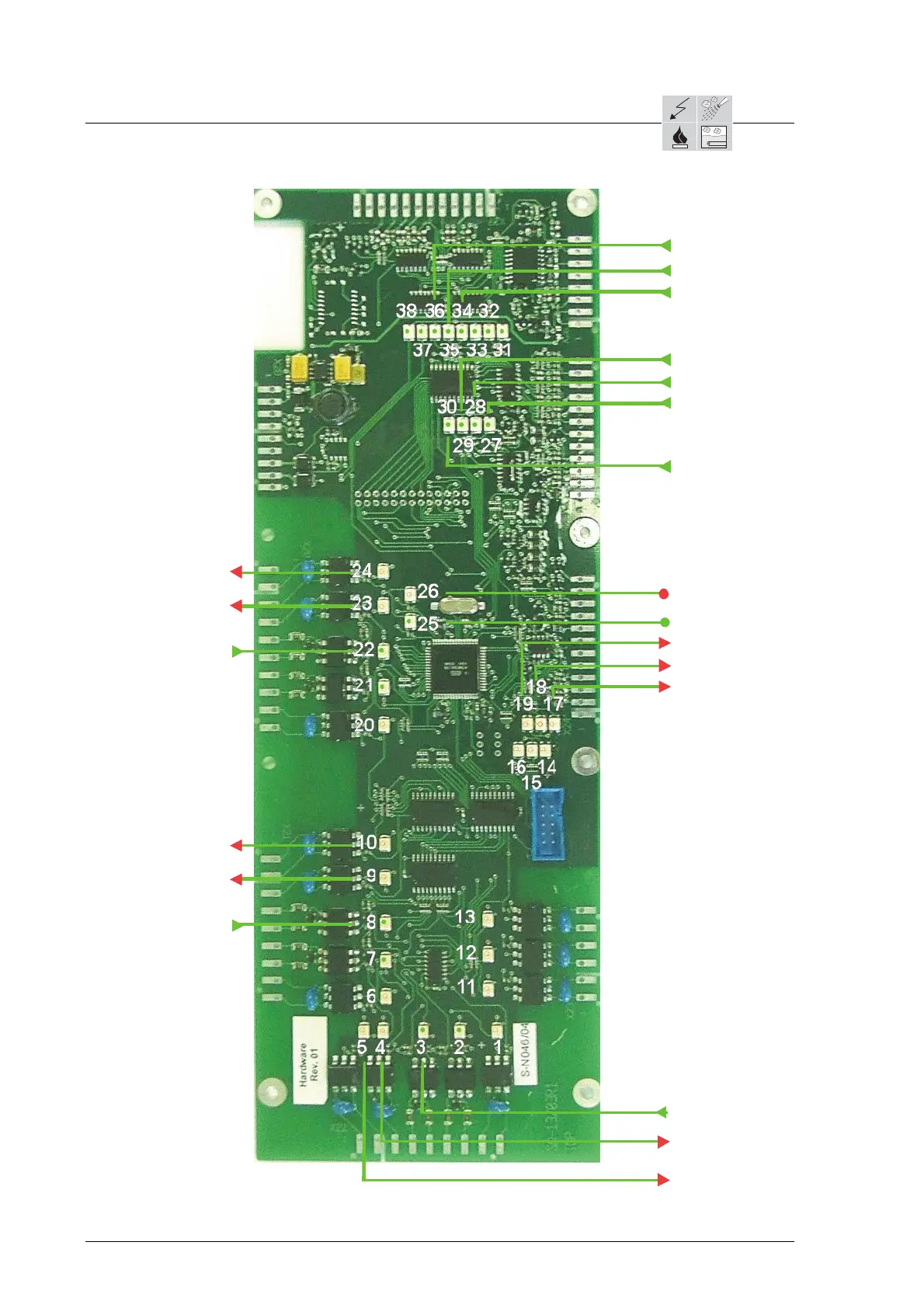

Gas module
GM
36 = flame OK HL2
35 = flame OK DE
30 = rpm cavity fan
(only with hall sensor)
29 = rpm fan HL2
28 = rpm fan DE
27 = rpm fan HL1
17 = fan HL1 PWM
26 = error
25 = diagnostic-LED(always on)
19 = fan HL2 PWM
18 = fan DE PWM
24 = reset HL1
23 = heat demand HL1
22 = alarm HL1
10 = reset DE
9 = heat demand DE
8 = alarm DE
4 = heat demand HL2
5 = reset HL2
34 = flame OK HL1
3 = alarm HL2
Remark:
green LED = input
red LED = output
HL1 = upper convection burner
HL2 = lower convection burner
DE = boiler burner
