Service Handbook OEB/OES/OGB/OGS
2.4 Safety settings (parallel to cooking programmes)
2.4.2 Electronic safety switches

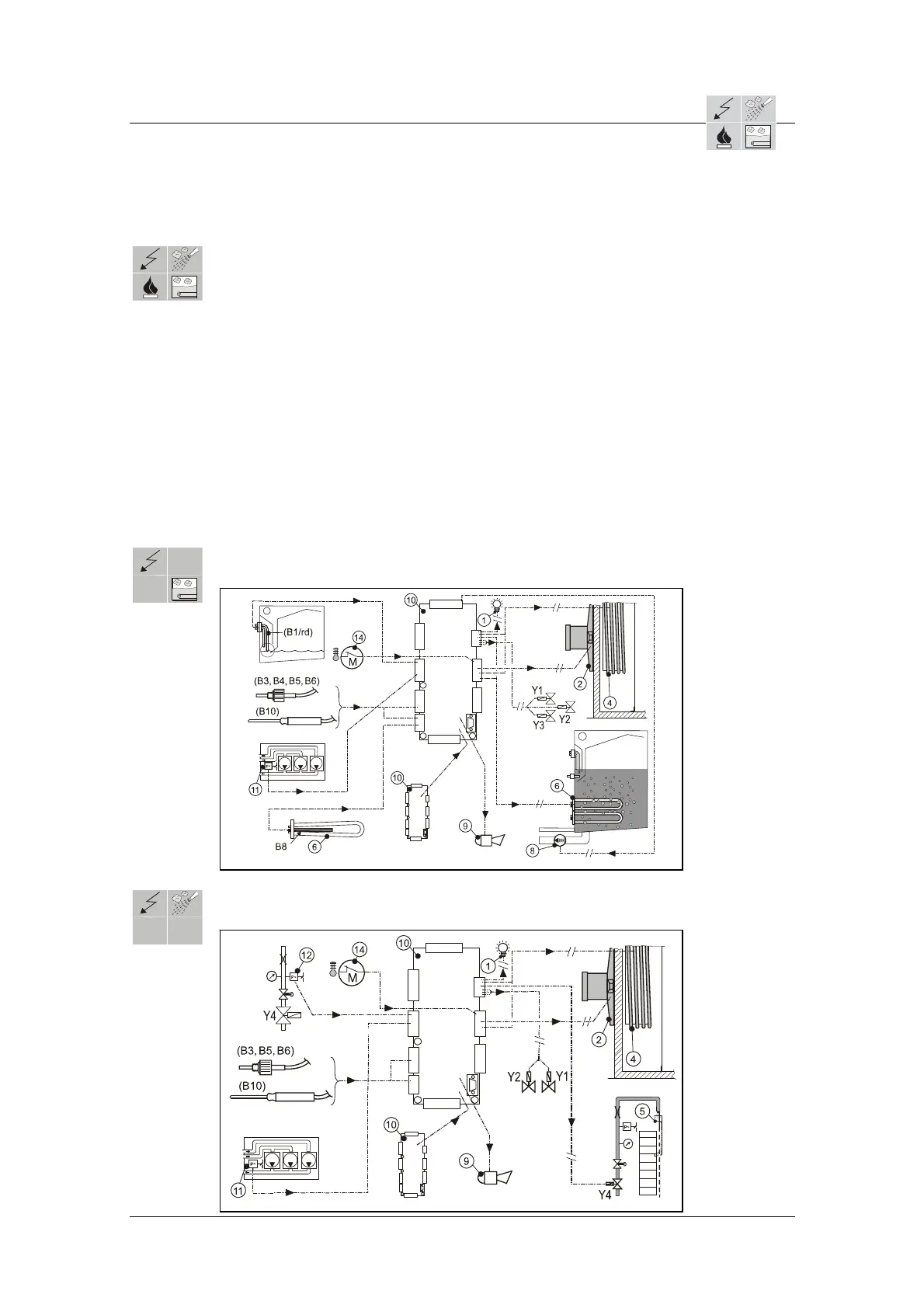

Legend to the principle drawings (valid for all units)
1 = Oven lamp
2 = Fan moto
r
3 = Convection heat exchanger
4 = Convection heating
5 = Direct injection
6 = Steam generator heating
7 = Steam generator heat exchanger
8 = Steam generator pump
9 = Buzzer (on the electronic)
10 = Control module SM
11 = Pressure switch S2 – CONVOClean
system
12 = Pressure switch S1 of the Direct
injection
13 = Fan reverberation sensor
14 = Fan motor Thermo clicker
15 = Automatic firing
16 = Gas module (GM)
// = is switched off
Electric units with Steam generator (OEB)
Page 1 / 3
Electric units with Direct injection (OES)
AS/11-2011 2_04_02e_Electronic safety switches_b
