Service manual OEB/OES/OGB/OGS
AS/11-2011 6_03e_Update of Software EasyTouch-control_b.doc
Page 4 / 5

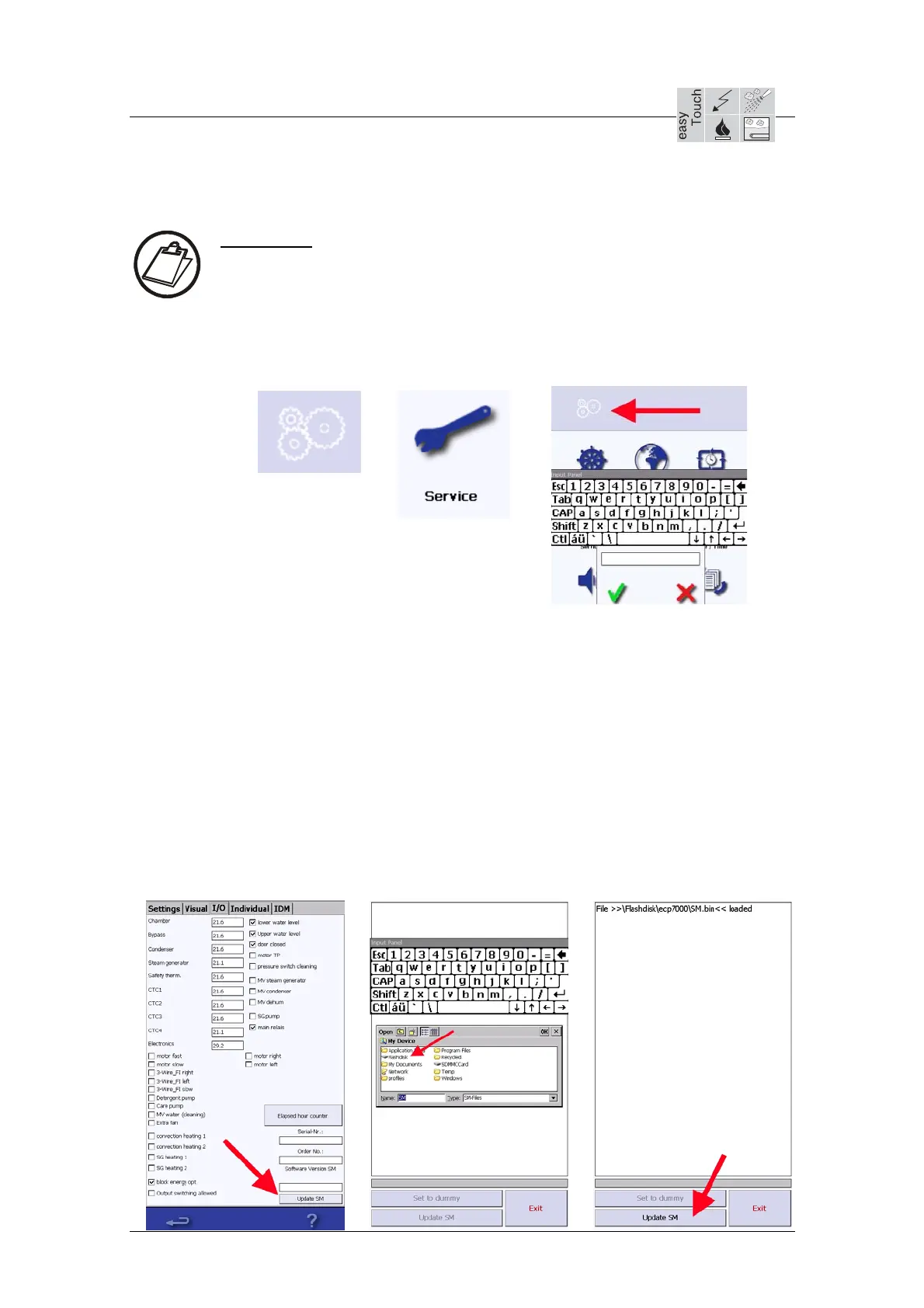

6.3.3 Updating the control module for software version 1.3.0.0
Instructions:
1. Start the combi steamer in the operating mode as usual and then enter the
Settings screen (button with gear wheels - see Screenshot 5).
2. In the Settings screen click on the spanner (see Screenshot 9) and enter the
password “1qaz” in order to enter the service area (see Screenshot 10).
3. The “Update SM” button can be found in the service area under the tab “I/O”
(at the top of the picture). Click on this button in order to initiate the update
process (see Screenshot 11).
4. Following this a folder window opens in which you must double click to switch
to the “Flashdisk” and then to the folder “ecp7000” (see Screenshot 12).
5. In the “ecp7000” folder there is a file with the name “SM.bin” which you must
also select by double clicking it.
6. When the file has been loaded the message “File
>>\Flashdisk\ecp7000\SM.bin<< loaded” appears on the screen. Press the
“Update SM” push button (lower left) to start the update of the control module
(see Screenshot 13).
Screenshot 9
Screenshot 13 Screenshot 11 Screenshot 12
Screenshot 5
Screenshot 10
