Chapter 2
Hardware Setup
Connecting the StreamEnjin Unit

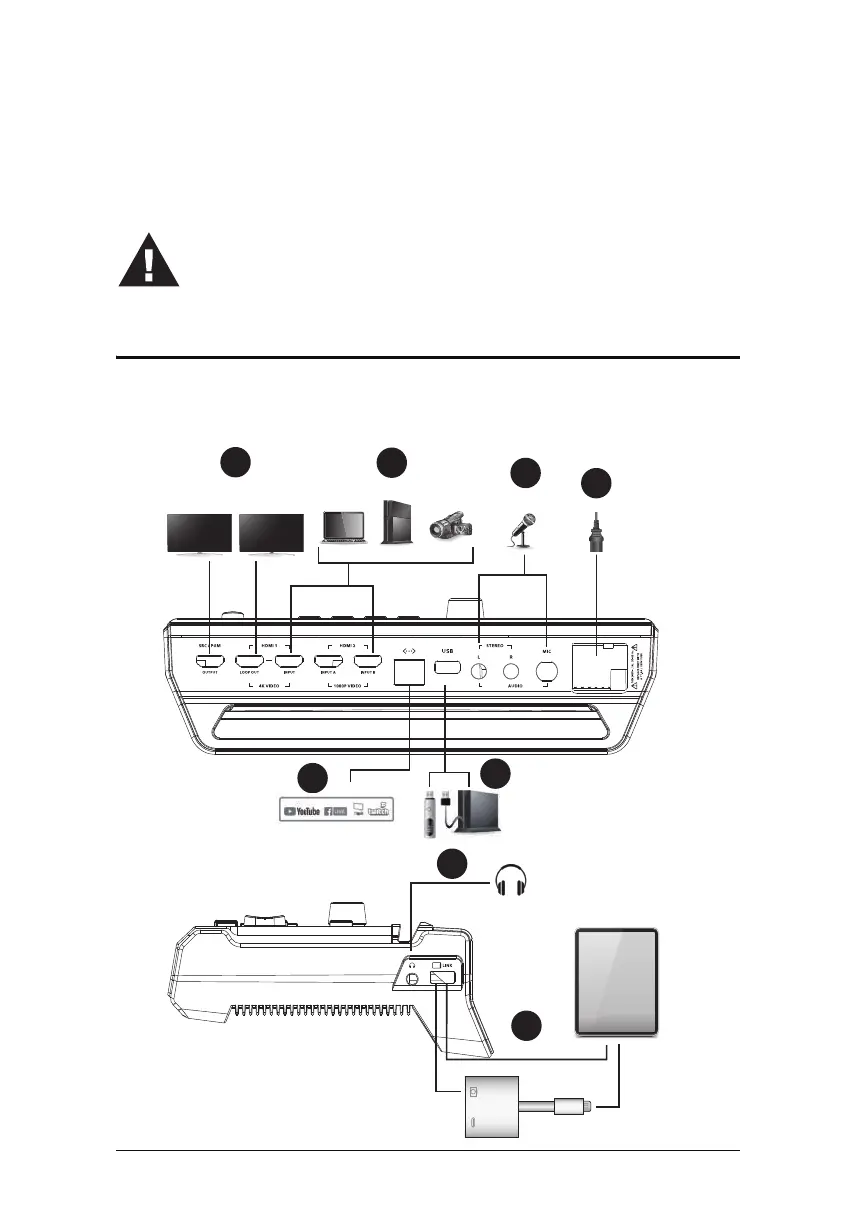

Follow the steps below to connect the StreamEnjin to an HDMI
source and the host.
Please review the safety information regarding the placement
of this device in Safety Instructions, page59.
1
2
4
3
7
8
5
6
4K
Loop Out
FHD
Program Out
Display
Display
or
or
HDMI Video Source (Unencrypted)
MIC / Audio Source
Power Cord
Lightning
iPad
USB-C
Internet
Earphone
