PR205-117-507-02
PINSTCGI420

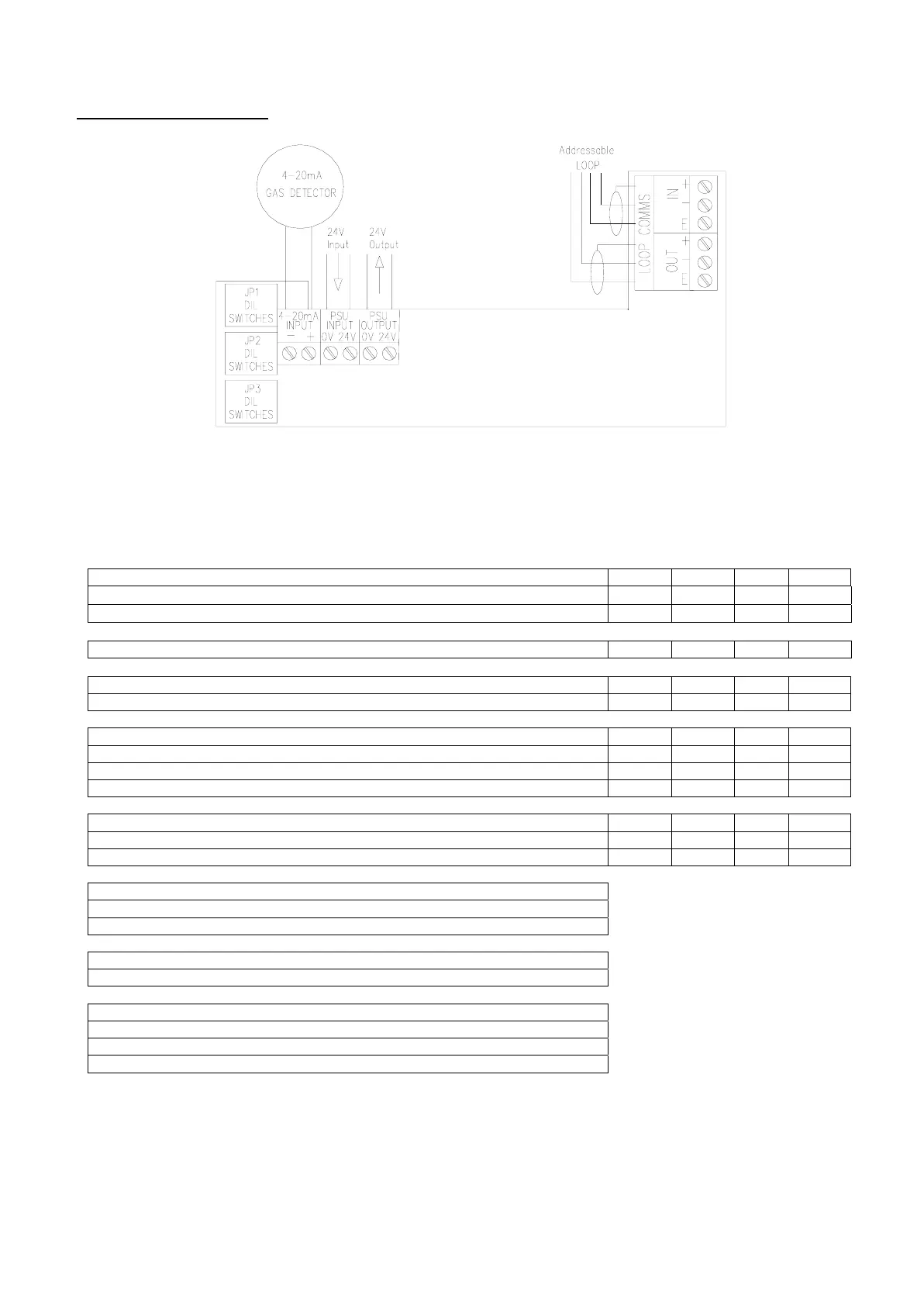

Standard Connections
Notes:
1. Only connect cable screen to its adjacent earth terminal.
2. Output relays are volt-free contacts and are not monitored.
3. Sensitivity is set by DIL switch’s JP1,J P2 &J P3.
4. 24V External power supply is required
Specifications
Loop Load Min Nom Max Units
Quiescent Current 310
Operating Loop Voltage 18 30 V DC
Inputs
4 20 mA
External PSU 15V 30V V DC
Environmental
Operating Temperature -10 +60 °C
Humidity (Non Condensing) 95 %RH
Standards
EN54: Pt2 & 4
BS5839 : Pt1 (Installation)
Compatibility
Suitable for use with Cooper Analogue Addressable Fire Systems
Physical
Dimensions 147 x 88 x 57 (mm)
Weight 0.25kg
Ingress Protection IP40
